Mechanical · M-HBAJ8

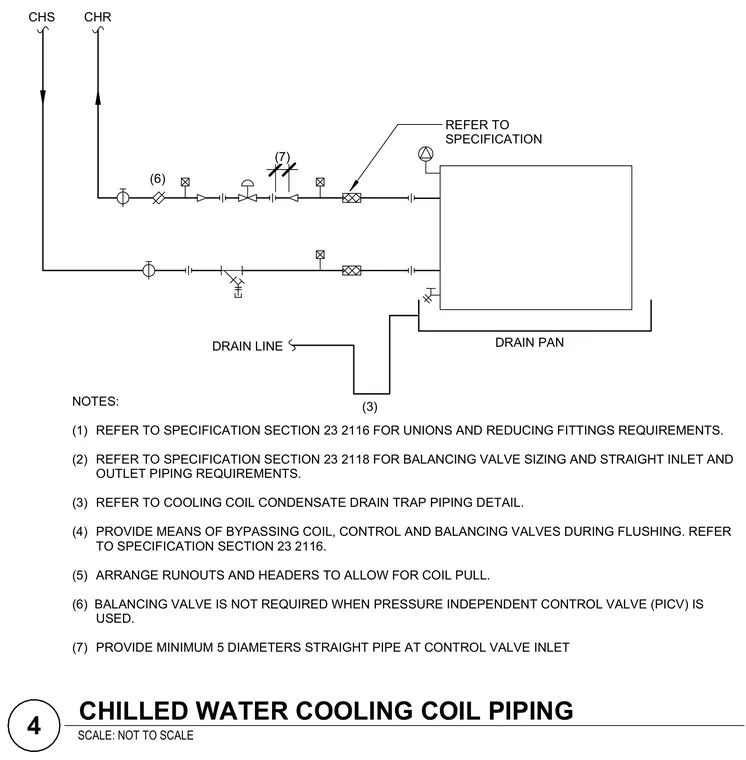

Chilled Water Cooling Coil Piping

Elements

About this detail

A chilled water cooling coil connects to chilled water supply and return lines via a piping layout incorporating unions, reducing fittings, and a balancing valve or pressure independent control valve positioned ahead of the coil inlet, alongside a minimum of five pipe diameters of straight inlet piping. Runouts and headers are arranged to allow for coil pull, with provisions made to bypass the coil, control, and balancing valves during system flushing. A condensate drain pan beneath the cooling coil routes through a drain line linked to a drain trap detail.
