Mechanical · M-HB4M6

VAV Terminal Box with Three-Way Reheat Coil Piping

Elements

About this detail

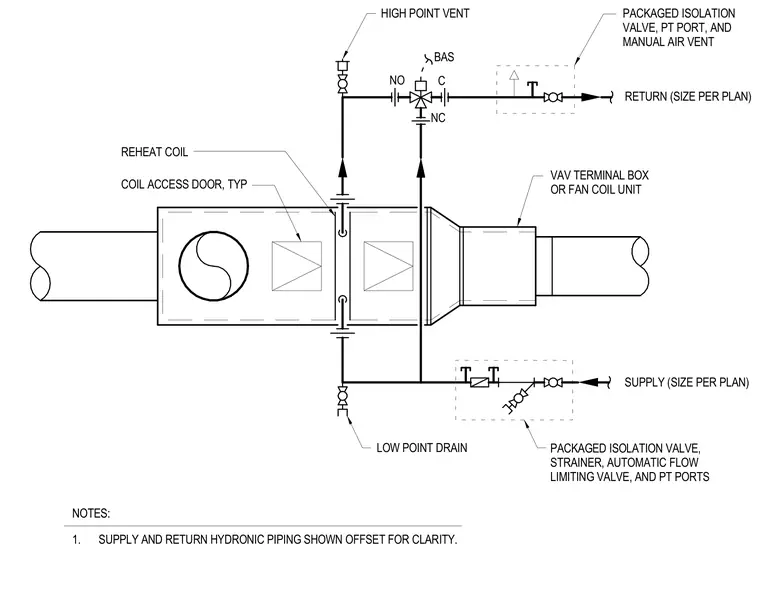

A variable air volume terminal box or fan coil unit connects to supply and return hydronic piping equipped with a three-way control valve, a reheat coil, and a typical coil access door. The supply branch incorporates a packaged assembly containing an isolation valve, strainer, automatic flow limiting valve, and pressure/temperature ports, along with a low point drain. The return branch includes a packaged isolation valve, pressure/temperature port, manual air vent, and a high point vent. Supply and return hydronic piping is shown offset for clarity.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
