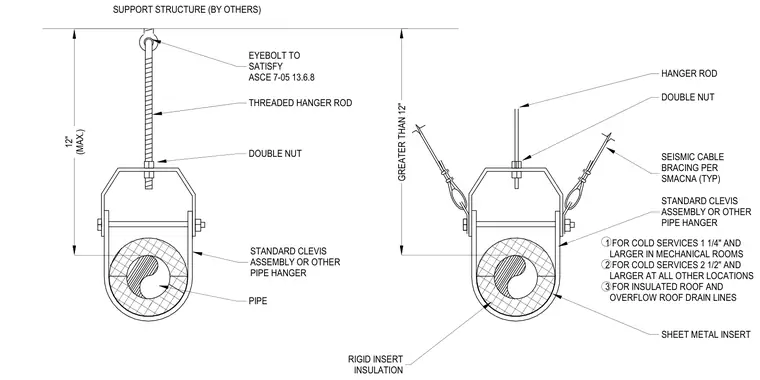

The suspended pipe assembly hangs from an overhead support structure by a threaded hanger rod secured with double nuts and an eyebolt satisfying ASCE 7-05 13.6.8. A standard clevis assembly or other approved pipe hanger supports the insulated pipe containing a rigid insert and sheet metal insert. Seismic cable bracing per SMACNA is installed typically for pipe drops greater than 12 inches for cold services 1 1/4 inches and larger in mechanical rooms, cold services 2 1/2 inches and larger at all other locations, and insulated roof and overflow roof drain lines.
GREATER THAN 12" 1 FOR COLD SERVICES 1 1/4" AND LARGER IN MECHANICAL ROOMS 2 FOR COLD SERVICES 2 1/2" AND LARGER AT ALL OTHER LOCATIONS 3 FOR INSULATED ROOF AND OVERFLOW ROOF DRAIN LINES 12" (MAX.) SUPPORT STRUCTURE (BY OTHERS) HANGER ROD DOUBLE NUT SEISMIC CABLE BRACING PER SMACNA (TYP) STANDARD CLEVIS ASSEMBLY OR OTHER PIPE HANGER SHEET METAL INSERT PIPE DOUBLE NUT THREADED HANGER ROD EYEBOLT TO SATISFY ASCE 7-05 13.6.8 RIGID INSERT INSULATION STANDARD CLEVIS ASSEMBLY OR OTHER PIPE HANGER
