Heat Exchanger Piping Detail

Materials

Elements

About this detail

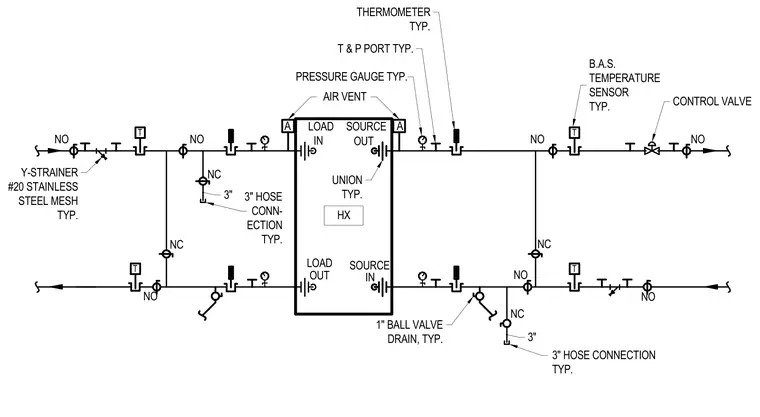

Piping arrangement for a heat exchanger, incorporating load and source connections with unions typically installed at each port. Y-strainers featuring twenty-gauge stainless steel mesh are included on the piping lines. Control valves, ball valves for draining, and air vents are arranged throughout the schematic. Instrumentation includes typical thermometers, temperature and pressure ports, pressure gauges, and building automation system temperature sensors.
