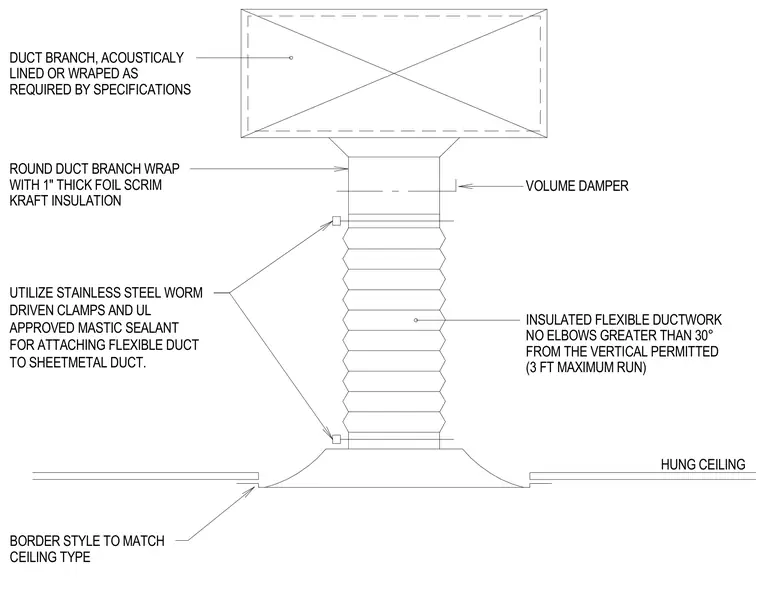

An insulated flexible duct connects a sheet metal duct branch to a ceiling diffuser with a matching border style. The round duct branch wrap consists of one-inch thick foil scrim kraft insulation with an acoustically lined or wrapped duct branch as required by specifications. A volume damper is installed in the transition, and the flexible duct run is restricted to a maximum of three feet with no elbows greater than 30 degrees from the vertical. Stainless steel worm-driven clamps and UL approved mastic sealant secure the flexible duct to the sheet metal duct at both ends.
DUCT BRANCH, ACOUSTICALY REQUIRED BY SPECIFICATIONS LINED OR WRAPED AS KRAFT INSULATION WITH 1" THICK FOIL SCRIM ROUND DUCT BRANCH WRAP FROM THE VERTICAL PERMITTED NO ELBOWS GREATER THAN 30° INSULATED FLEXIBLE DUCTWORK (3 FT MAXIMUM RUN) HUNG CEILING VOLUME DAMPER BORDER STYLE TO MATCH CEILING TYPE UTILIZE STAINLESS STEEL WORM DRIVEN CLAMPS AND UL APPROVED MASTIC SEALANT FOR ATTACHING FLEXIBLE DUCT TO SHEETMETAL DUCT.
