A packaged air conditioning unit rests on a manufacturer-supplied roof curb that is leveled by the general contractor. Roofing work is installed by the general contractor around the curb base. A roof opening is provided for ductwork and sized per the architectural plans. Anchorage of the curb to the concrete roof follows the requirements of the seismic submittal.

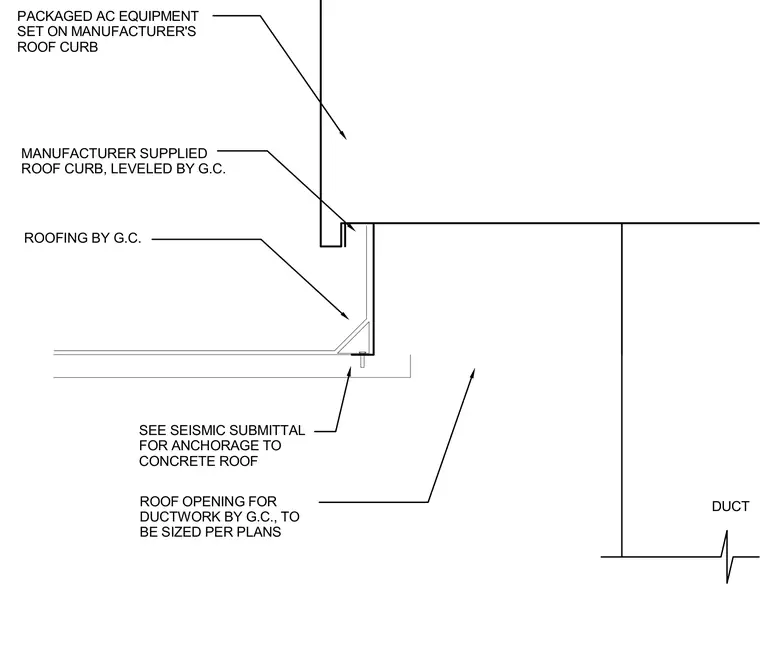

PACKAGED AC EQUIPMENT SET ON MANUFACTURER'S ROOF CURB MANUFACTURER SUPPLIED ROOF CURB, LEVELED BY G.C. ROOFING BY G.C. DUCT ROOF OPENING FOR DUCTWORK BY G.C., TO BE SIZED PER PLANS SEE SEISMIC SUBMITTAL FOR ANCHORAGE TO CONCRETE ROOF
