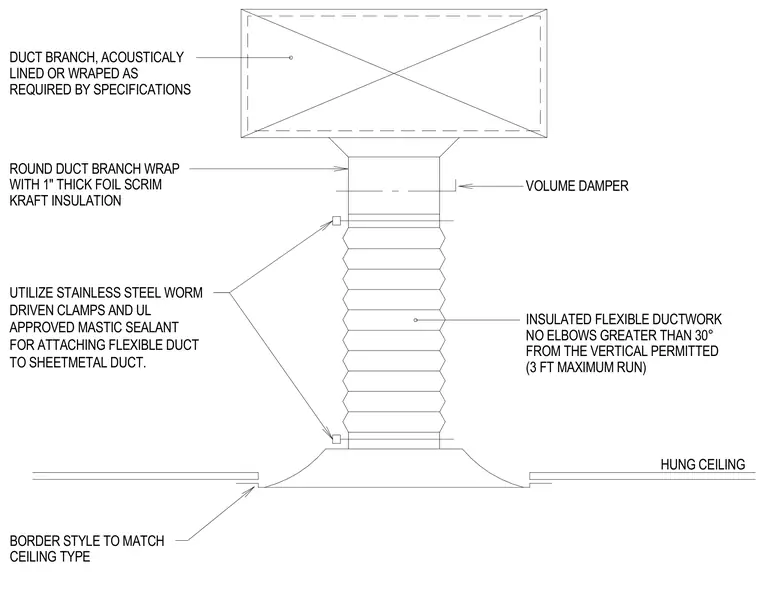

An acoustically lined or wrapped rectangular duct branch transitions to a round duct wrapped with one-inch thick foil scrim kraft insulation. A volume damper regulates airflow within the transition before connecting to an insulated flexible ductwork run limited to a three-foot maximum length with no elbows greater than thirty degrees from the vertical. Stainless steel worm-driven clamps and UL-approved mastic sealant attach the flexible duct to the sheetmetal collar. The assembly terminates at a hung ceiling with a border style matching the ceiling type.
DUCT BRANCH, ACOUSTICALY REQUIRED BY SPECIFICATIONS LINED OR WRAPED AS KRAFT INSULATION WITH 1" THICK FOIL SCRIM ROUND DUCT BRANCH WRAP FROM THE VERTICAL PERMITTED NO ELBOWS GREATER THAN 30° INSULATED FLEXIBLE DUCTWORK (3 FT MAXIMUM RUN) HUNG CEILING VOLUME DAMPER BORDER STYLE TO MATCH CEILING TYPE UTILIZE STAINLESS STEEL WORM DRIVEN CLAMPS AND UL APPROVED MASTIC SEALANT FOR ATTACHING FLEXIBLE DUCT TO SHEETMETAL DUCT.
