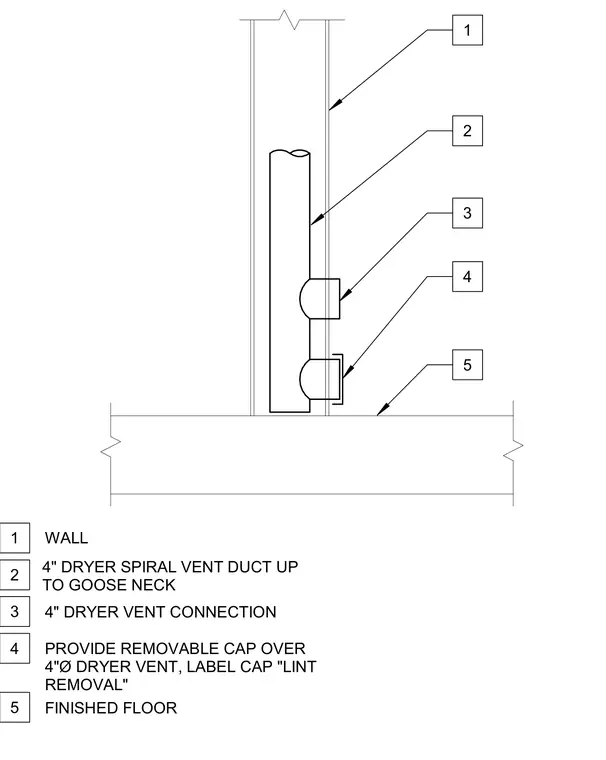

A four-inch dryer spiral vent duct runs vertically up the wall cavity toward an exterior goose neck termination. A four-inch dryer vent connection pierces the wall assembly above the finished floor level. A removable cap is provided over the four-inch diameter dryer vent and labeled as lint removal.
1 WALL 4" DRYER SPIRAL VENT DUCT UP TO GOOSE NECK 4" DRYER VENT CONNECTION PROVIDE REMOVABLE CAP OVER 4"Ø DRYER VENT, LABEL CAP "LINT REMOVAL" FINISHED FLOOR 2 3 4 5 1 2 3 4 5
