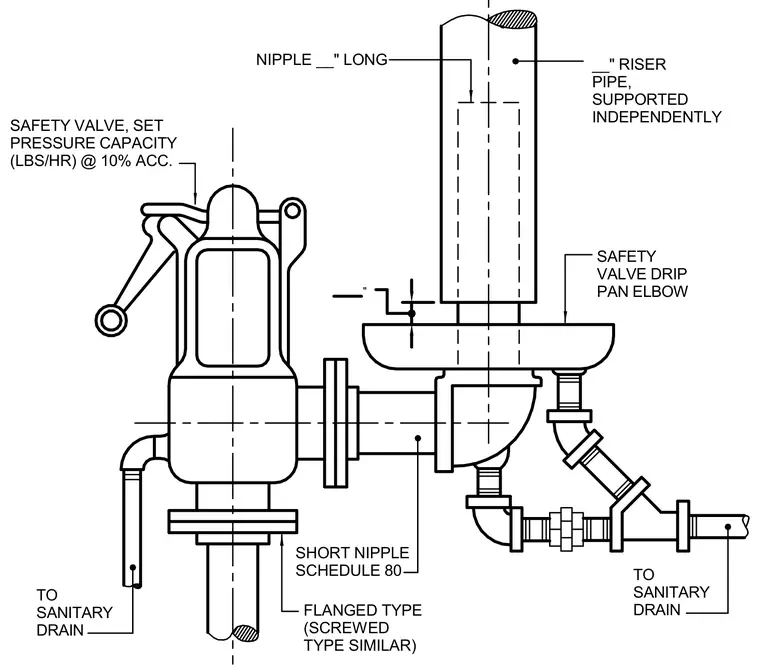

A safety relief valve connects to a horizontally oriented short nipple of Schedule 80 pipe, with flanged or screwed type connections. An independently supported vertical riser pipe extends upward through a safety valve drip pan elbow. Condensate and discharge from both the valve and drip pan route via short nipples and elbows to the sanitary drain.
" TO SANITARY DRAIN FLANGED TYPE (SCREWED TYPE SIMILAR) SHORT NIPPLE SCHEDULE 80 TO SANITARY DRAIN SAFETY VALVE DRIP PAN ELBOW __" RISER PIPE, SUPPORTED INDEPENDENTLY NIPPLE __" LONG SAFETY VALVE, SET PRESSURE CAPACITY (LBS/HR) @ 10% ACC.
