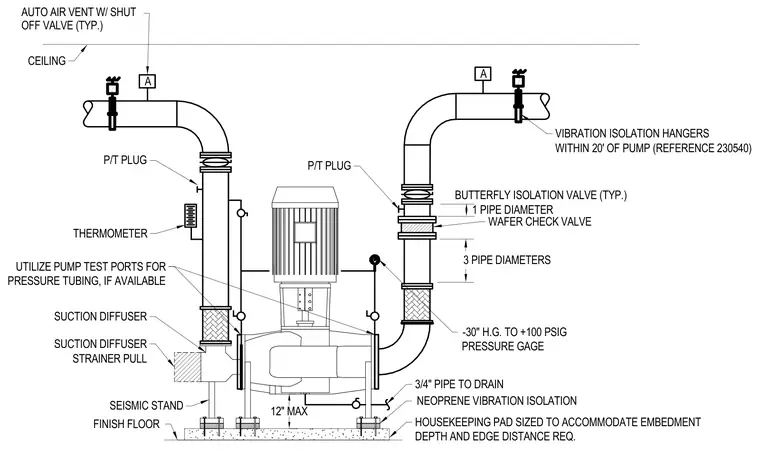

A vertical inline pump rests on a concrete housekeeping pad over neoprene vibration isolation and is supported by a seismic stand. The suction side incorporates a suction diffuser with a strainer pull, pressure gauge, and thermometer, while the discharge side features a wafer check valve and butterfly isolation valve spaced per pipe diameter requirements. Auto air vent valves with shut-offs are mounted near the ceiling line, and vibration isolation hangers secure the piping within twenty feet of the pump.
Z Z FINISH FLOOR 12" MAX SEISMIC STAND A 1 PIPE DIAMETER WAFER CHECK VALVE 3 PIPE DIAMETERS BUTTERFLY ISOLATION VALVE (TYP.) SUCTION DIFFUSER THERMOMETER P/T PLUG SUCTION DIFFUSER STRAINER PULL A AUTO AIR VENT W/ SHUT OFF VALVE (TYP.) CEILING P/T PLUG VIBRATION ISOLATION HANGERS WITHIN 20' OF PUMP (REFERENCE 230540) 3/4" PIPE TO DRAIN NEOPRENE VIBRATION ISOLATION HOUSEKEEPING PAD SIZED TO ACCOMMODATE EMBEDMENT DEPTH AND EDGE DISTANCE REQ. -30" H.G. TO +100 PSIG PRESSURE GAGE UTILIZE PUMP TEST PORTS FOR PRESSURE TUBING, IF AVAILABLE
