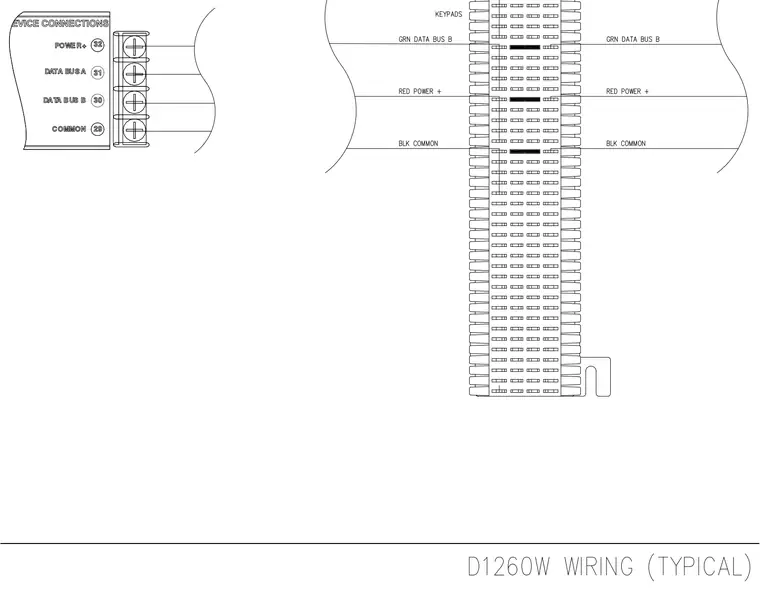

Typical device connections for a D1260W unit, detailing the terminal block layout and wiring designations. The interface block includes numbered screw terminals for power and data distribution. Terminal 32 connects to Power Plus, terminal 31 connects to Data Bus A, terminal 30 connects to Data Bus B, and terminal 29 connects to Common. Corresponding circuit paths extend to keypads with specific line labeling including Green Data Bus B, Red Power Plus, and Black Common.
