Vav Reheat Box With 3-Way Valve Detail

Elements

About this detail

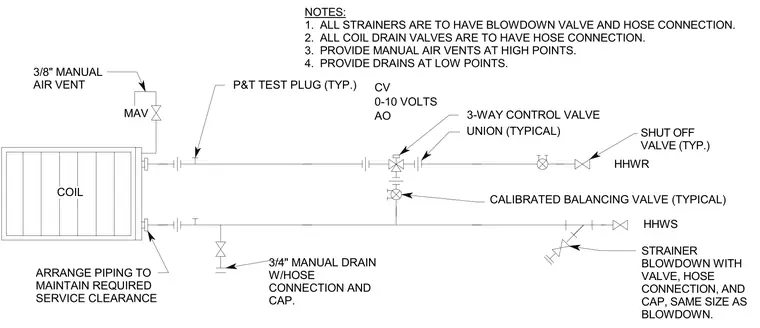

This hydronic piping diagram outlines the connections for a VAV reheat coil served by hot water heating supply and return lines. The assembly incorporates a three-way control valve connected via typical unions, a calibrated balancing valve on the bypass, and pressure-temperature test plugs. Strainers feature a blowdown valve and hose connection with a cap matching the blowdown size. A three-eighths-inch manual air vent is positioned at the high point, while a three-quarter-inch manual drain with a hose connection and cap serves the low point. Piping must be arranged to maintain required service clearances.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
