The roof exhaust fan utility set mounts onto a prefabricated equipment support anchored to the roof deck, with insulation and roofing material providing the building envelope. A fan base rail sits atop vibration isolation units per specifications, supported level on the equipment support curb. A counter flashing hood is secured with angle iron welded to the hood on the bottom and welded or fastened to the equipment platform on top, maintaining a penetration-free flashing assembly. The fan outlet duct extension features an extended top opening away from the bottom opening to mitigate rain entering the fan housing. A fan housing drain and drain plug are provided for maintenance.

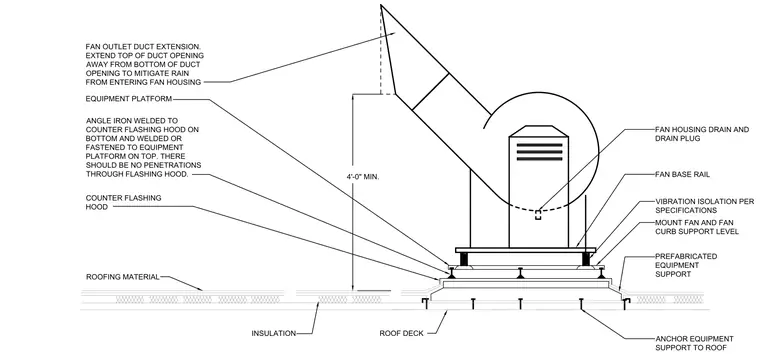

EQUIPMENT PLATFORM COUNTER FLASHING HOOD ROOFING MATERIAL PREFABRICATED EQUIPMENT SUPPORT INSULATION ROOF DECK ANCHOR EQUIPMENT SUPPORT TO ROOF MOUNT FAN AND FAN CURB SUPPORT LEVEL VIBRATION ISOLATION PER SPECIFICATIONS FAN BASE RAIL 4'-0" MIN. FAN HOUSING DRAIN AND DRAIN PLUG FAN OUTLET DUCT EXTENSION. EXTEND TOP OF DUCT OPENING AWAY FROM BOTTOM OF DUCT OPENING TO MITIGATE RAIN FROM ENTERING FAN HOUSING ANGLE IRON WELDED TO COUNTER FLASHING HOOD ON BOTTOM AND WELDED OR FASTENED TO EQUIPMENT PLATFORM ON TOP. THERE SHOULD BE NO PENETRATIONS THROUGH FLASHING HOOD.
