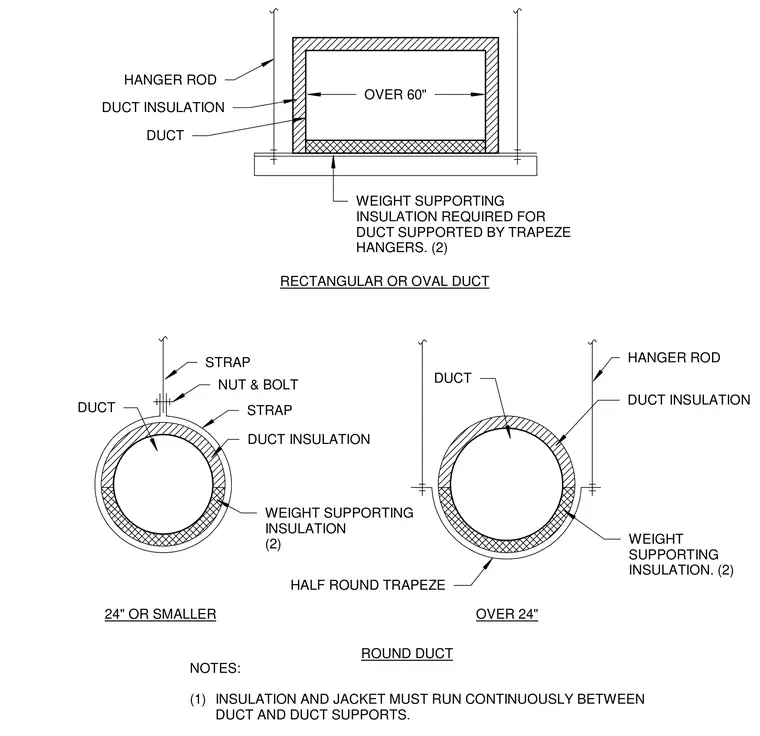

Insulated duct supports are installed with continuous duct insulation and a protective jacket running between the duct and supports. Rectangular or oval ducts over sixty inches wide rest on weight-supporting insulation placed over trapeze hanger assemblies suspended by hanger rods. Round ducts twenty-four inches or smaller utilize hanging straps secured with nuts and bolts over continuous insulation with weight-supporting inserts. Round ducts over twenty-four inches use half-round trapeze hangers with weight-supporting insulation located beneath the duct insulation.
NOTES: (1) INSULATION AND JACKET MUST RUN CONTINUOUSLY BETWEEN DUCT AND DUCT SUPPORTS. DUCT INSULATION HANGER ROD DUCT HANGER ROD DUCT INSULATION DUCT ROUND DUCT RECTANGULAR OR OVAL DUCT DUCT HALF ROUND TRAPEZE DUCT INSULATION STRAP 24" OR SMALLER OVER 24" NUT & BOLT STRAP WEIGHT SUPPORTING INSULATION. (2) WEIGHT SUPPORTING INSULATION (2) WEIGHT SUPPORTING INSULATION REQUIRED FOR DUCT SUPPORTED BY TRAPEZE HANGERS. (2) OVER 60"
