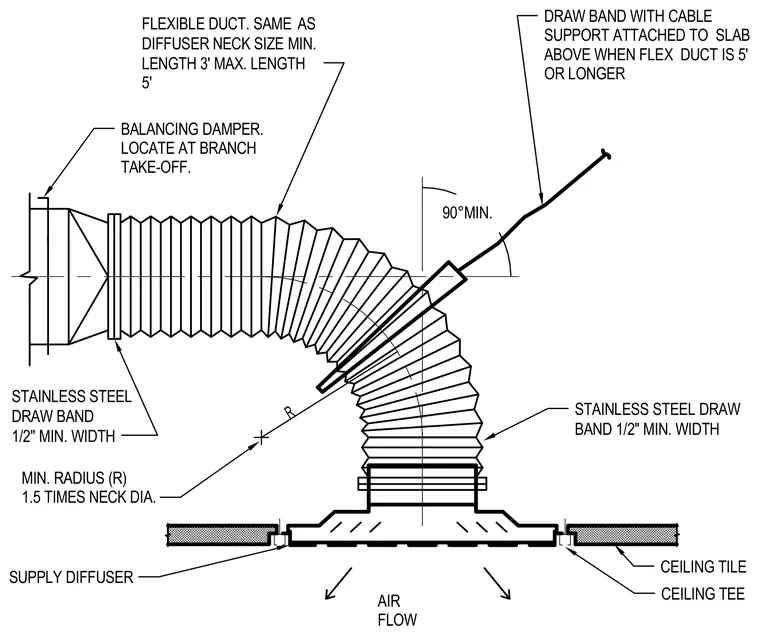

A flexible duct connects to a supply diffuser set in a ceiling tile and grid system, secured at each end with a stainless steel draw band of half-inch minimum width. A balancing damper is located at the branch take-off. The flexible duct maintains a minimum radius of one and a half times the neck diameter at turns. When the flexible duct is five feet or longer, a draw band with a cable support attached to the structural slab above provides additional vertical support.
SUPPLY DIFFUSER CEILING TEE CEILING TILE STAINLESS STEEL DRAW BAND 1/2" MIN. WIDTH DRAW BAND WITH CABLE SUPPORT ATTACHED TO SLAB ABOVE WHEN FLEX DUCT IS 5' OR LONGER FLEXIBLE DUCT. SAME AS DIFFUSER NECK SIZE MIN. LENGTH 3' MAX. LENGTH 5' BALANCING DAMPER. LOCATE AT BRANCH TAKE-OFF. STAINLESS STEEL DRAW BAND 1/2" MIN. WIDTH MIN. RADIUS (R) 1.5 TIMES NECK DIA. 90°MIN. R AIR FLOW
