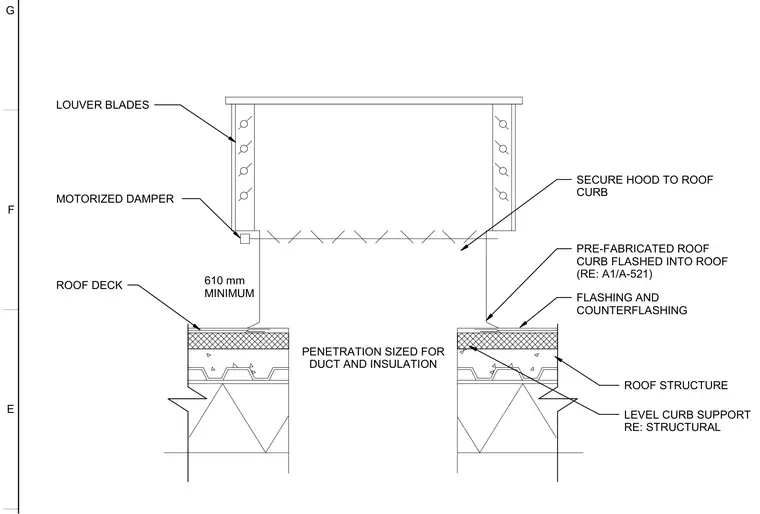

A roof penetration is framed through the roof structure and deck, providing a level curb support for mechanical equipment. A prefabricated roof curb is flashed and counterflashed into the roof assembly with a minimum six hundred ten millimeter clearance. The roof hood features louver blades and houses a motorized damper, and is securely fastened to the top of the roof curb.
PENETRATION SIZED FOR DUCT AND INSULATION FLASHING AND COUNTERFLASHING PRE-FABRICATED ROOF CURB FLASHED INTO ROOF (RE: A1/A-521) SECURE HOOD TO ROOF CURB ROOF DECK ROOF STRUCTURE 610 mm MINIMUM LEVEL CURB SUPPORT RE: STRUCTURAL MOTORIZED DAMPER LOUVER BLADES E F G
