Insulated pipes with vapor barrier jackets are secured with Unistrut P1100 series pipe clamps resting on a Unistrut P1000 1-5/8"x1-5/8" channel member. The trapeze channel is suspended by three-eighths inch all-thread rods anchored to the overhead structure, fastened with snug-tight nuts. Maximum spacing for the support is eight feet, carrying a maximum load of eighty pounds per linear foot with a maximum twelve-inch threaded rod length.

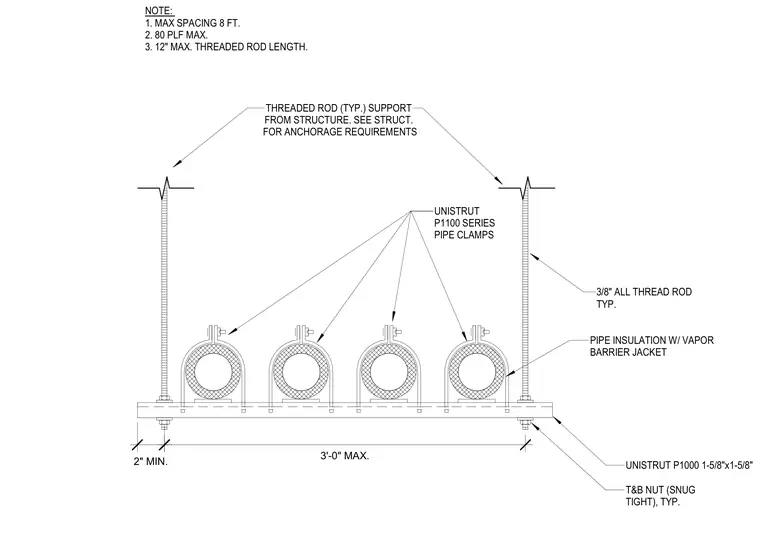

PIPE INSULATION W/ VAPOR BARRIER JACKET UNISTRUT P1000 1-5/8"x1-5/8" T&B NUT (SNUG TIGHT), TYP. 2" MIN. 3/8" ALL THREAD ROD TYP. NOTE: 1. MAX SPACING 8 FT. 2. 80 PLF MAX. 3. 12" MAX. THREADED ROD LENGTH. UNISTRUT P1100 SERIES PIPE CLAMPS 3'-0" MAX. THREADED ROD (TYP.) SUPPORT FROM STRUCTURE. SEE STRUCT. FOR ANCHORAGE REQUIREMENTS
