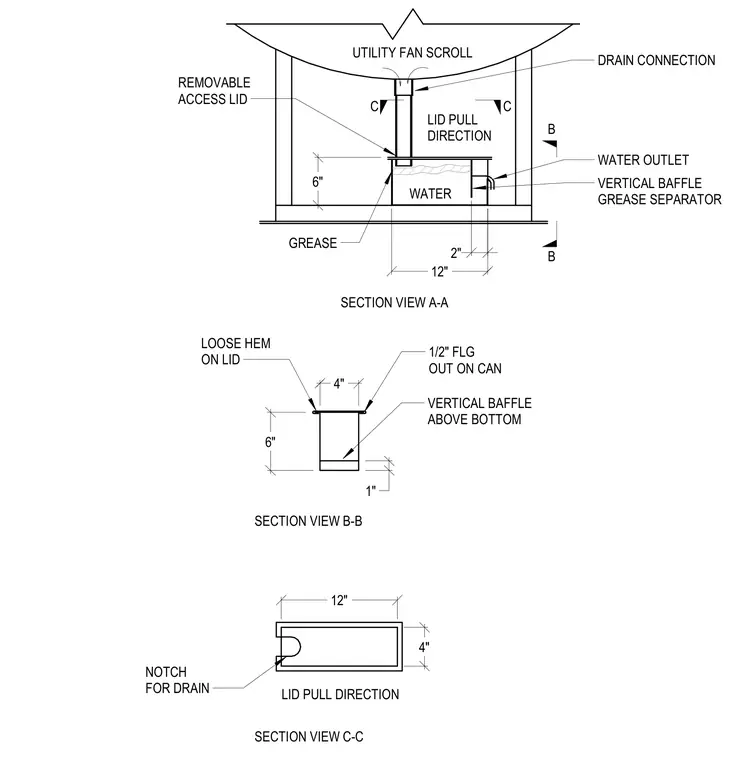

The utility fan scroll connects to a drain leading into a grease separator positioned below. The separator features a vertical baffle located above the bottom, a water outlet, and a 1/2-inch flange out on the can. A removable access lid with a loose hem and a notch for the drain covers the separator, allowing for lid pull direction access.
LID PULL DIRECTION DRAIN CONNECTION WATER OUTLET VERTICAL BAFFLE GREASE SEPARATOR UTILITY FAN SCROLL LID PULL DIRECTION REMOVABLE ACCESS LID GREASE WATER 1/2" FLG OUT ON CAN VERTICAL BAFFLE ABOVE BOTTOM LOOSE HEM ON LID NOTCH FOR DRAIN 12" 4" 6" 1" 4" 6" 2" 12" SECTION VIEW A-A SECTION VIEW B-B SECTION VIEW C-C B B C C
