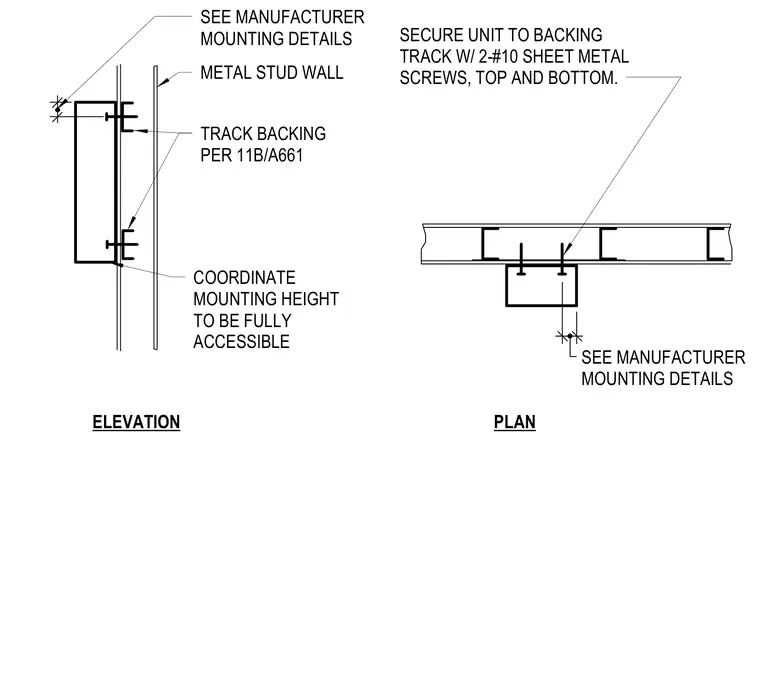

A variable frequency drive unit is secured to a metal stud wall with track backing per 11B/A661. The unit attaches to the backing track with two number 10 sheet metal screws at the top and bottom. Mounting height is coordinated to be fully accessible.
ELEVATION PLAN SEE MANUFACTURER MOUNTING DETAILS SEE MANUFACTURER MOUNTING DETAILS SECURE UNIT TO BACKING TRACK W/ 2-#10 SHEET METAL SCREWS, TOP AND BOTTOM. METAL STUD WALL TRACK BACKING PER 11B/A661 COORDINATE MOUNTING HEIGHT TO BE FULLY ACCESSIBLE
