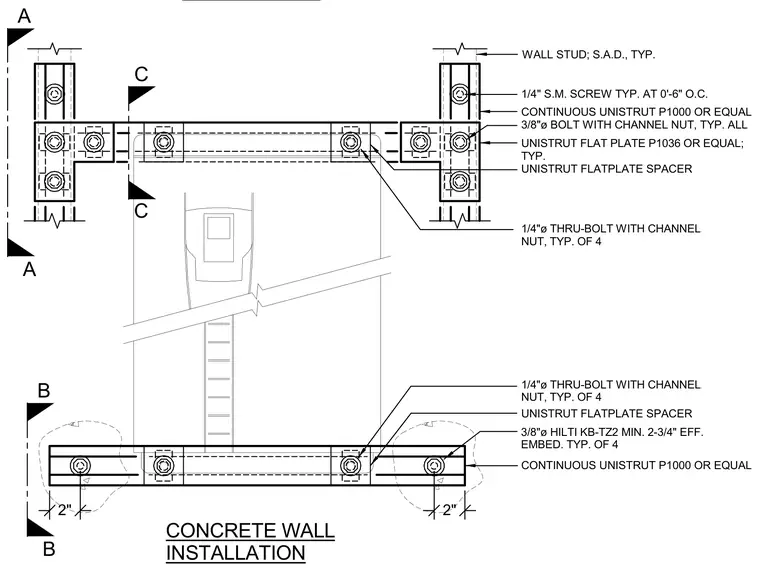

Continuous Unistrut P1000 channels attach to a concrete wall using three-eighths-inch diameter Hilti KB-TZ2 expansion anchors requiring a minimum two-and-three-quarter-inch effective embedment. Wall studs secure to the channel assembly using typical quarter-inch sheet metal screws spaced at six inches on center. Unistrut P1036 flat plate connectors and flat plate spacers join the channel intersections with quarter-inch and three-eighths-inch diameter through-bolts complete with channel nuts.
CONTINUOUS UNISTRUT P1000 OR EQUAL WALL STUD; S.A.D., TYP. 1/4" S.M. SCREW TYP. AT 0'-6" O.C. UNISTRUT FLATPLATE SPACER 3/8"ø BOLT WITH CHANNEL NUT, TYP. ALL UNISTRUT FLAT PLATE P1036 OR EQUAL; TYP. 1/4"ø THRU-BOLT WITH CHANNEL NUT, TYP. OF 4 3/8"ø HILTI KB-TZ2 MIN. 2-3/4" EFF. EMBED. TYP. OF 4 CONTINUOUS UNISTRUT P1000 OR EQUAL UNISTRUT FLATPLATE SPACER 1/4"ø THRU-BOLT WITH CHANNEL NUT, TYP. OF 4 2" 2" A C B A C B INSTALLATION CONCRETE WALL INSTALLATION
