Mechanical · M-FXN9S

Electric Kiln Exhaust Hood and Mechanical Tag Details

Materials

Elements

Walls Roofs Drainage Anchors / Embeds Connections / Plates

About this detail

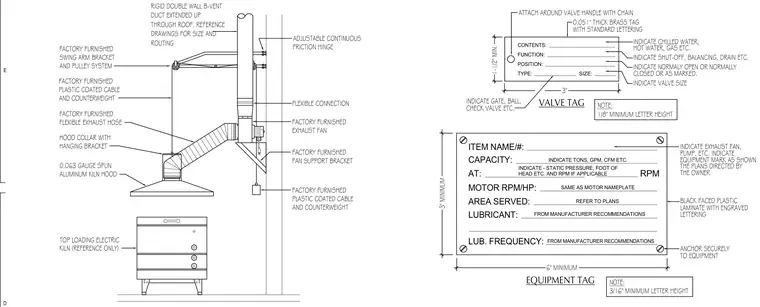

An assembly for a top-loading electric kiln exhaust system features a zero-point-zero-six-three-gauge spun aluminum kiln hood connected via a hood collar and hanging bracket to a factory-furnished flexible exhaust hose. The exhaust routes through a factory-furnished exhaust fan with a fan support bracket, flexible connection, and a rigid double-wall B-vent duct extending up through the roof. A factory-furnished swing-arm bracket and pulley system with a plastic-coated cable and counterweight supports the hood and allows vertical adjustment via an adjustable continuous friction hinge. Accompanying details show standard brass valve tags and black-faced plastic laminate equipment tags with engraved lettering, sizing minimums, and specified mounting parameters.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
