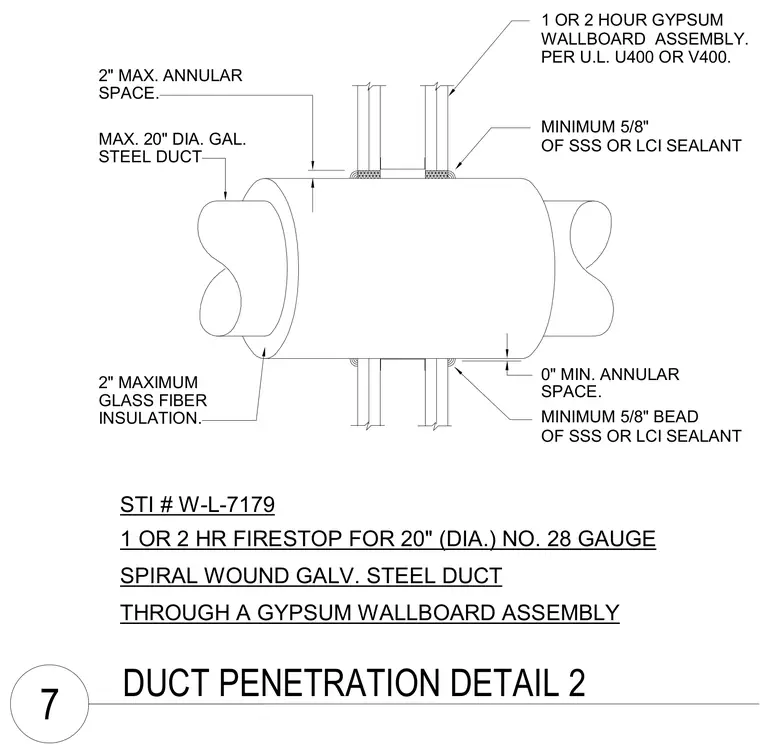

A spiral wound galvanized steel duct with a maximum twenty-inch diameter penetrates a one or two-hour fire-rated gypsum wallboard assembly constructed per Underwriters Laboratories U400 or V400 series designs. The assembly accommodates a maximum twenty-inch diameter number twenty-eight gauge spiral wound galvanized steel duct wrapped in two-inch maximum glass fiber insulation. An annular space ranging from zero to two inches surrounds the duct and is sealed with a minimum five-eighths inch bead of specified STI SSS or LCI firestop sealant on each side. The penetration follows Specific Technologies Inc system number W-L-7179 for one or two-hour firestop ratings.
WALLBOARD ASSEMBLY. PER U.L. U400 OR V400. OF SSS OR LCI SEALANT MINIMUM 5/8" MINIMUM 5/8" BEAD 0" MIN. ANNULAR 1 OR 2 HOUR GYPSUM GLASS FIBER SPIRAL WOUND GALV. STEEL DUCT THROUGH A GYPSUM WALLBOARD ASSEMBLY 1 OR 2 HR FIRESTOP FOR 20" (DIA.) NO. 28 GAUGE INSULATION. STI # W-L-7179 MAX. 20" DIA. GAL. STEEL DUCT 2" MAXIMUM SPACE. 2" MAX. ANNULAR SPACE. OF SSS OR LCI SEALANT DUCT PENETRATION DETAIL 2 7
