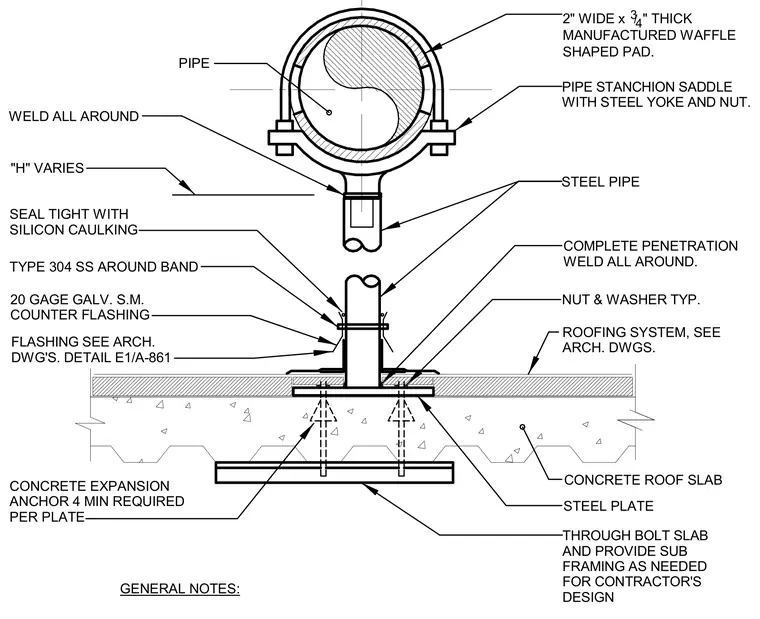

A steel pipe is supported on a roof by a pipe stanchion saddle featuring a steel yoke and nut, lined with a two-inch wide by three-quarter-inch thick manufactured waffle-shaped pad. The vertical steel pipe stanchion connects with a complete penetration weld all around and runs down through a twenty-gauge galvanized sheet metal counter-flashing sealed tight with type 304 stainless steel around the band and silicon caulking. The stanchion secures to a steel plate bearing on the concrete roof slab with a minimum of four concrete expansion anchors per plate, utilizing typical nuts and washers. The slab assembly includes provisions for through-bolting and sub-framing as needed for the contractor's design, coordinated with the roofing system shown on the architectural drawings.
NUT & WASHER TYP. "H" VARIES PIPE STEEL PLATE CONCRETE EXPANSION ANCHOR 4 MIN REQUIRED PER PLATE STEEL PIPE PIPE STANCHION SADDLE WITH STEEL YOKE AND NUT. 2" WIDE x 3 /4 " THICK MANUFACTURED WAFFLE SHAPED PAD. COMPLETE PENETRATION WELD ALL AROUND. ROOFING SYSTEM, SEE ARCH. DWGS. SEAL TIGHT WITH SILICON CAULKING TYPE 304 SS AROUND BAND 20 GAGE GALV. S.M. COUNTER FLASHING FLASHING SEE ARCH. DWG'S. DETAIL E1/A-861 WELD ALL AROUND CONCRETE ROOF SLAB GENERAL NOTES: THROUGH BOLT SLAB AND PROVIDE SUB FRAMING AS NEEDED FOR CONTRACTOR'S DESIGN
