Mechanical · M-FRX22

Fuel Pipe Support Framing and Anchorage Detail

Materials

Steel

Elements

Columns Anchors / Embeds Connections / Plates

Connections

Bolted Connection Embed Plate

About this detail

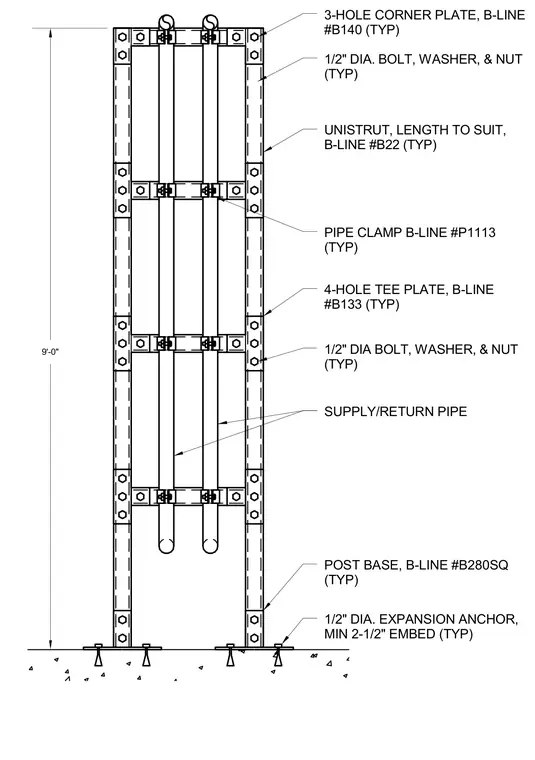

Vertical unistrut channels rise nine feet from a concrete floor, anchored at each post base by half-inch diameter expansion anchors with a minimum two-and-a-half-inch embedment. Horizontal unistrut members connect to the vertical posts using three-hole corner plates at the top and four-hole tee plates at intermediate heights, secured with half-inch diameter bolts, washers, and nuts. Supply and return pipes attach to the framing using pipe clamps sized to fit the lines. All structural framing components utilize manufacturer-specified metal framing channels and connection hardware.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
