An insulated flexible duct connects to the supply plenum of a Titus linear slot diffuser, which is integrated into a hard lid ceiling as specified on architectural plans. The plenum and duct connection sizing are coordinated per the floor plans.

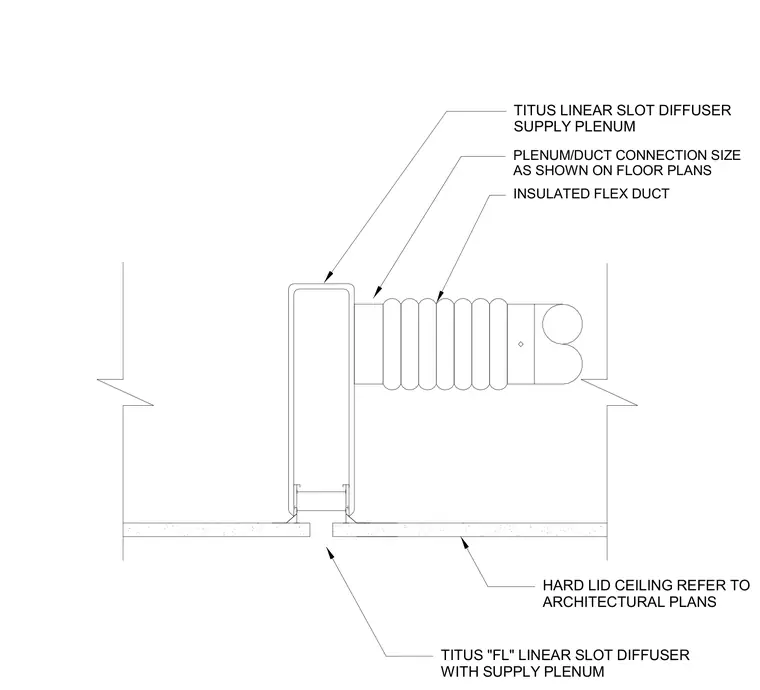

INSULATED FLEX DUCT TITUS LINEAR SLOT DIFFUSER SUPPLY PLENUM HARD LID CEILING REFER TO ARCHITECTURAL PLANS TITUS "FL" LINEAR SLOT DIFFUSER WITH SUPPLY PLENUM PLENUM/DUCT CONNECTION SIZE AS SHOWN ON FLOOR PLANS
