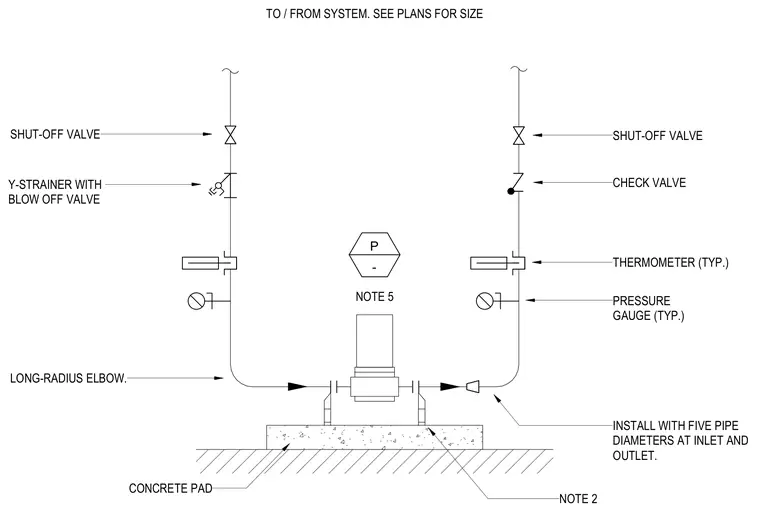

An inline pump is mounted on a concrete pad with supports tied to note two, connecting to supply and return piping routed through long-radius elbows. Each pipe branch incorporates a shut-off valve, a typical thermometer, and a typical pressure gauge. The inlet line includes a y-strainer with a blow-off valve, while the outlet line features a check valve. Piping is sized per plan, and all instrumentation must be installed with five pipe diameters of straight run at the inlet and outlet.
CONCRETE PAD SHUT-OFF VALVE Y-STRAINER WITH BLOW OFF VALVE SHUT-OFF VALVE CHECK VALVE NOTE 5 P - NOTE 2 TO / FROM SYSTEM. SEE PLANS FOR SIZE LONG-RADIUS ELBOW. THERMOMETER (TYP.) PRESSURE GAUGE (TYP.) INSTALL WITH FIVE PIPE DIAMETERS AT INLET AND OUTLET.
