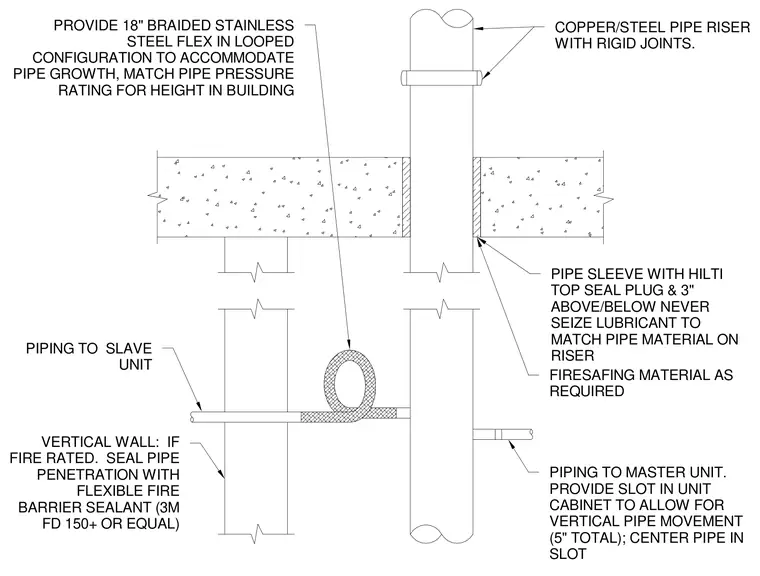

A copper or steel pipe riser with rigid joints passes through a concrete floor slab within a pipe sleeve containing a Hiliti top seal plug and three inches above and below of never-seize lubricant matching the pipe material, accompanied by required firesafing material. An eighteen-inch braided stainless steel flex loop is installed in a looped configuration to accommodate pipe growth, matching the pipe pressure rating for the building height. Piping to the slave unit passes through a vertical wall, with penetrations sealed using a flexible fire barrier sealant such as 3M FD 150+ when rated. Piping to the master unit incorporates a slot in the unit cabinet providing five inches of total vertical movement, with the pipe centered in the slot.
COPPER/STEEL PIPE RISER WITH RIGID JOINTS. PIPE SLEEVE WITH HILTI TOP SEAL PLUG & 3" ABOVE/BELOW NEVER SEIZE LUBRICANT TO MATCH PIPE MATERIAL ON RISER FIRESAFING MATERIAL AS REQUIRED PROVIDE 18" BRAIDED STAINLESS STEEL FLEX IN LOOPED CONFIGURATION TO ACCOMMODATE PIPE GROWTH, MATCH PIPE PRESSURE RATING FOR HEIGHT IN BUILDING PIPING TO SLAVE UNIT VERTICAL WALL: IF FIRE RATED. SEAL PIPE PENETRATION WITH FLEXIBLE FIRE BARRIER SEALANT (3M FD 150+ OR EQUAL) PIPING TO MASTER UNIT. PROVIDE SLOT IN UNIT CABINET TO ALLOW FOR VERTICAL PIPE MOVEMENT (5" TOTAL); CENTER PIPE IN SLOT
