A three-foot rail section connects to a horizontal duct via a ten-inch diameter opening. The opposite side of the duct fitting is capped with part number OF-VENT-SIDE.

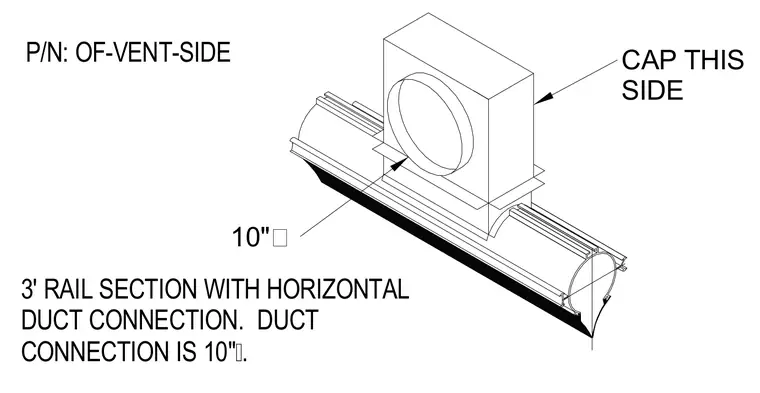

3' RAIL SECTION WITH HORIZONTAL DUCT CONNECTION. DUCT CONNECTION IS 10"∅. 10"∅ CAP THIS SIDE P/N: OF-VENT-SIDE
