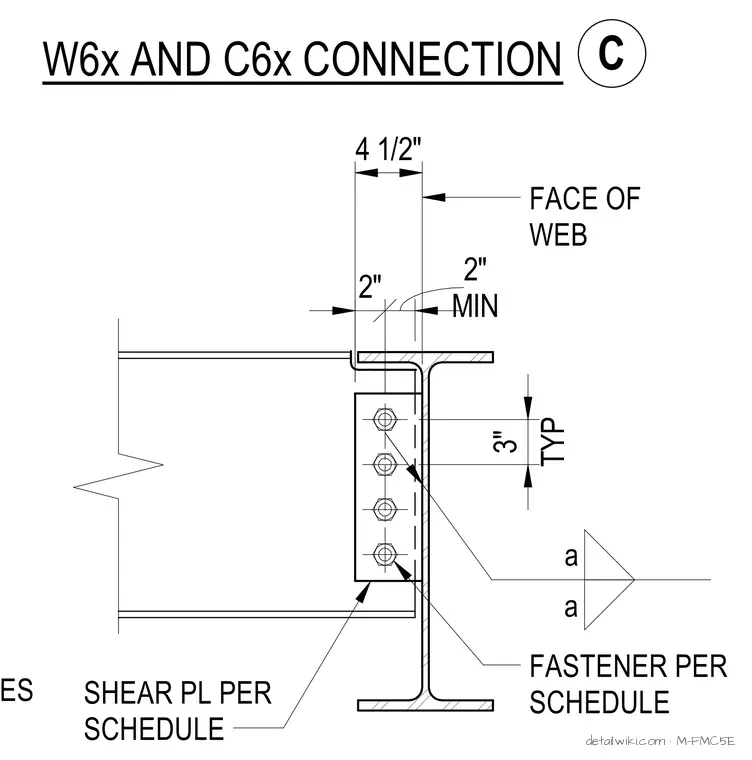

A W6x wide flange member connects to a C6x channel using a shear plate sized per schedule. Fasteners are installed per schedule with a typical three-inch spacing on center. The connection maintains a two-inch minimum clearance from the face of the web, with an overall dimension of four and one-half inches.
FACE OF WEB FASTENER PER SCHEDULE SHEAR PL PER SCHEDULE W6x AND C6x CONNECTION a a TYP 3" 2" MIN 2" 4 1/2" C *NOTE: 3 EDGES
