Cooling Coil Piping and Drainage Details

Elements

About this detail

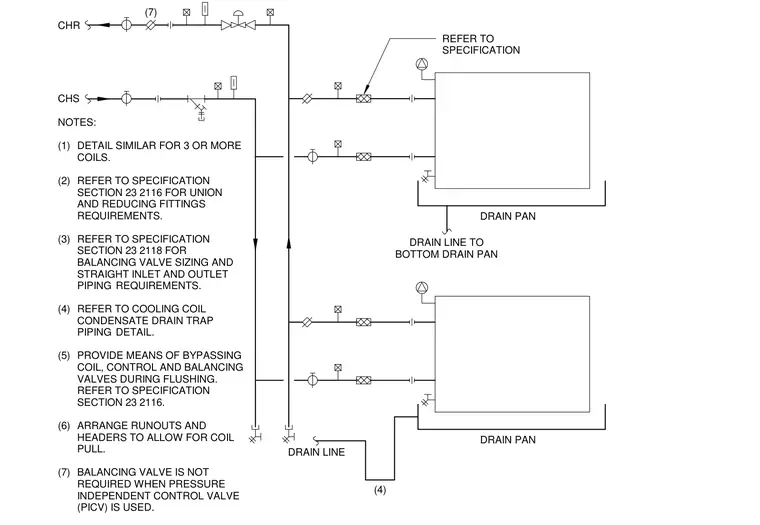

Chilled water supply and return piping connects to cooling coils with dedicated drain pans and condensate drain lines. The system includes chilled water supply CHS and chilled water return CHR headers, balancing valves, control valves, unions, and reducing fittings per project specifications. Runouts and headers are arranged to allow for coil pull, with provisions for bypassing coils, control valves, and balancing valves during system flushing. Condensate from the drain pans routes to traps and drain lines according to standard cooling coil details.
