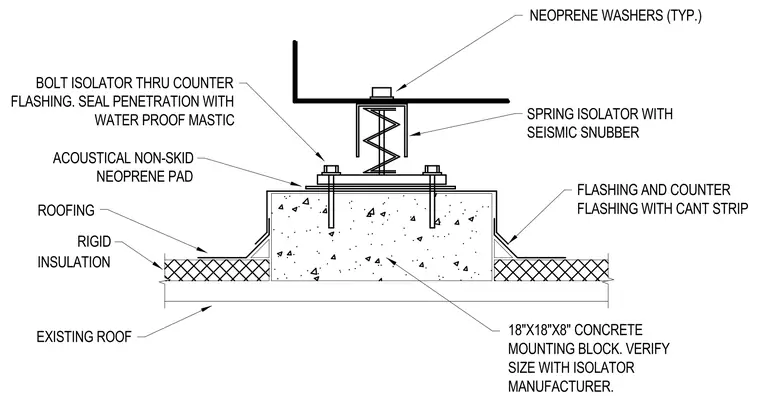

An eighteen by eighteen by eight inch concrete mounting block bears on an existing roof over rigid insulation, verified with the isolator manufacturer. An acoustical non-skid neoprene pad sits atop the concrete pad beneath the spring isolator with a seismic snubber. Bolts secure the isolator through the counter flashing into the concrete, with all penetrations sealed with waterproof mastic. Neoprene washers are provided at the bolted connections. Flashing with a cant strip integrates the concrete pad into the existing roofing assembly.
MANUFACTURER. SIZE WITH ISOLATOR MOUNTING BLOCK. VERIFY 18"X18"X8" CONCRETE FLASHING WITH CANT STRIP FLASHING AND COUNTER SEISMIC SNUBBER SPRING ISOLATOR WITH NEOPRENE WASHERS (TYP.) EXISTING ROOF INSULATION RIGID ROOFING BOLT ISOLATOR THRU COUNTER FLASHING. SEAL PENETRATION WITH WATER PROOF MASTIC ACOUSTICAL NON-SKID NEOPRENE PAD
