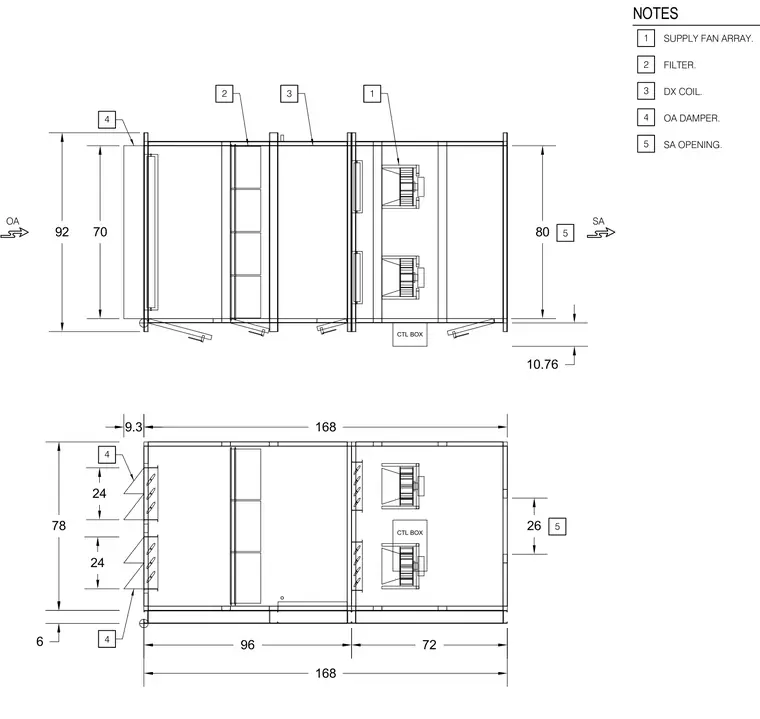

The unit layout shows a dedicated outdoor air system with an outside air damper, filter, direct expansion coil, supply fan array, and control box. Overall unit dimensions are one hundred sixty-eight inches long by seventy-eight inches high, with specific internal section lengths of ninety-six inches and seventy-two inches. The outside air opening measures ninety-two inches high by seventy inches wide, and the supply air opening measures eighty inches high. Control boxes and damper locations are coordinated throughout the assembly.
NOTES SUPPLY FAN ARRAY. DX COIL. 1 2 3 FILTER. 4 OA DAMPER. 1 4 4 4 2 3 5 SA OPENING. 5 5 CTL BOX CTL BOX 168 9.3 78 24 24 168 96 72 70 92 10.76 80 26 OA SA 6
