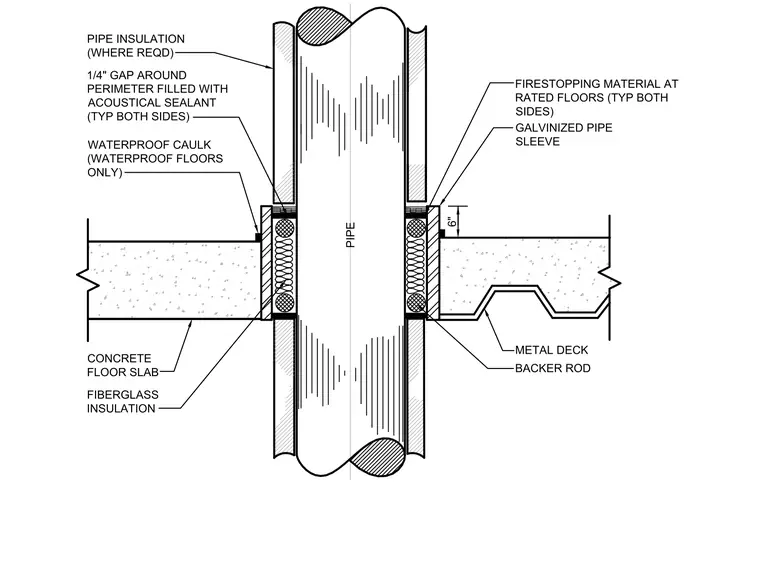

A vertical pipe passes through a concrete floor slab and metal deck supported by a six-inch galvanized pipe sleeve. The annular space contains fiberglass insulation and a backer rod, sealed with a one-quarter-inch gap filled with acoustical sealant typically on both sides. Firestopping material is applied at rated floors typically on both sides, while waterproof caulk is used on waterproof floors only. Pipe insulation is installed where required.
CONCRETE FLOOR SLAB WATERPROOF CAULK (WATERPROOF FLOORS ONLY) PIPE INSULATION (WHERE REQD) PIPE FIRESTOPPING MATERIAL AT RATED FLOORS (TYP BOTH SIDES) GALVINIZED PIPE SLEEVE METAL DECK 6" BACKER ROD FIBERGLASS INSULATION 1/4" GAP AROUND PERIMETER FILLED WITH ACOUSTICAL SEALANT (TYP BOTH SIDES)
