Coordinate the exact location of the wall-mounted concealed regulator with the architect prior to installation. The electronic and remote control system is designed to be embedded in the wall with the finished surface. Operation is adjustable using a hand-held remote.

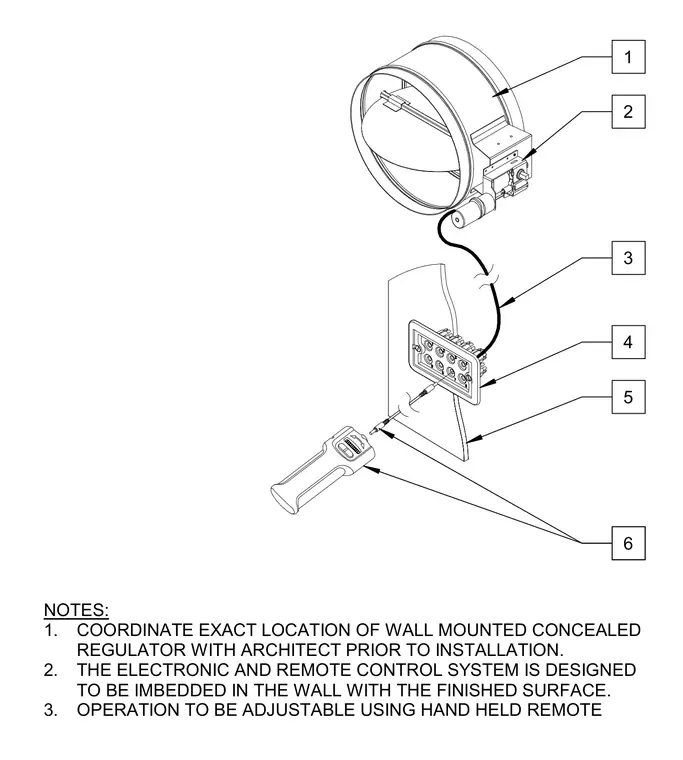

NOTES: 1. COORDINATE EXACT LOCATION OF WALL MOUNTED CONCEALED REGULATOR WITH ARCHITECT PRIOR TO INSTALLATION. 2. THE ELECTRONIC AND REMOTE CONTROL SYSTEM IS DESIGNED TO BE IMBEDDED IN THE WALL WITH THE FINISHED SURFACE. 3. OPERATION TO BE ADJUSTABLE USING HAND HELD REMOTE 1 2 3 4 5 6
