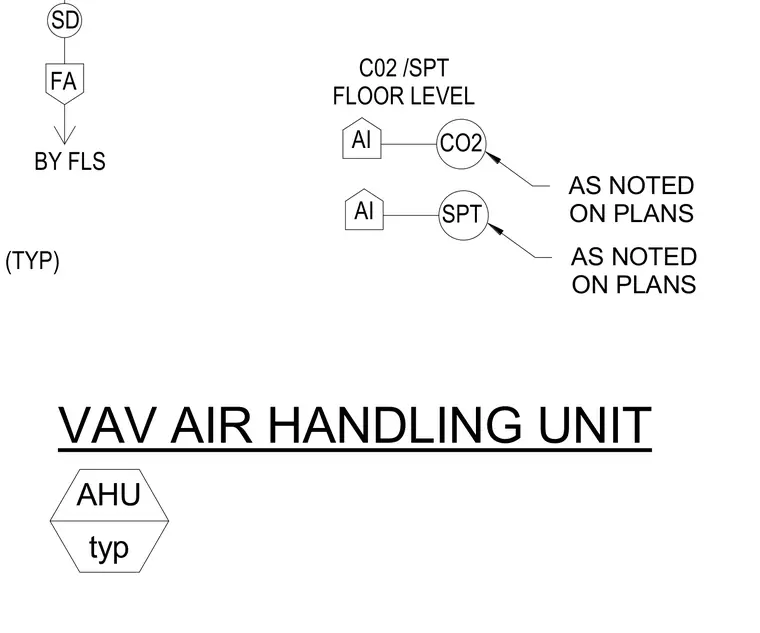

This diagram details control points and sensor associations for variable air volume air handling units. Carbon dioxide and space temperature sensors connect at the floor level as noted on plans. Smoke detectors integrate with fire life safety systems typically across the installation.
VAV AIR HANDLING UNIT SD FA AI CO2 AS NOTED ON PLANS C02 /SPT FLOOR LEVEL AHU typ BY FLS AI SPT AS NOTED ON PLANS VFD (TYP)
