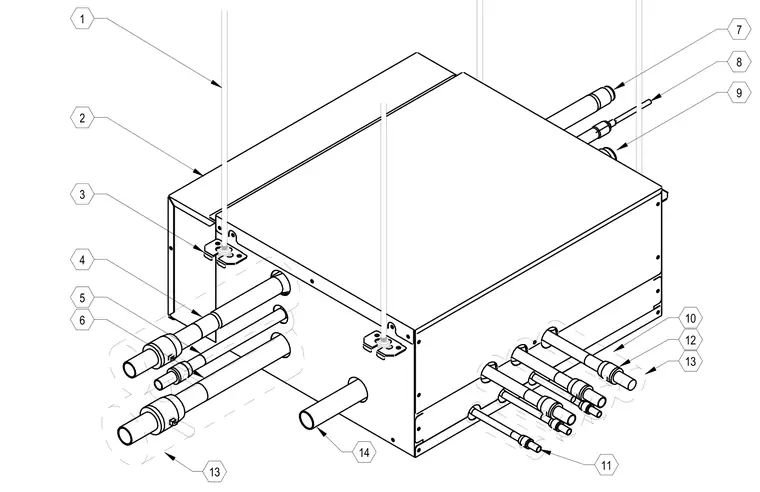

A variable refrigerant flow branch controller unit is suspended overhead by vertical threaded rods secured to mounting brackets on the housing. Refrigerant piping connects to the unit through multiple inlet and outlet ports. Each pipe features insulated sections and specialized fittings or joints as specified by the system layout. The assembly coordinates refrigerant distribution to multiple indoor units from a single outdoor condensing unit.
