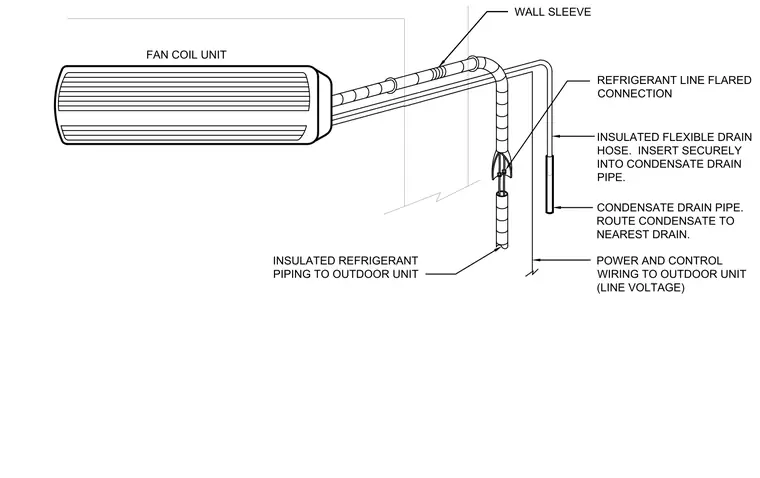

A wall-mounted fan coil unit connects to outdoor utilities through a protective wall sleeve carrying insulated refrigerant piping and control wiring. The flexible drain hose from the unit inserts securely into the building condensate drain pipe for routing to the nearest drain. Line voltage power and control wiring extend directly to the outdoor condensing unit. Insulated refrigerant lines connect via flared fittings behind the wall penetration.
WALL SLEEVE REFRIGERANT LINE FLARED CONNECTION INSULATED FLEXIBLE DRAIN HOSE. INSERT SECURELY INTO CONDENSATE DRAIN PIPE. POWER AND CONTROL WIRING TO OUTDOOR UNIT (LINE VOLTAGE) CONDENSATE DRAIN PIPE. ROUTE CONDENSATE TO NEAREST DRAIN. INSULATED REFRIGERANT PIPING TO OUTDOOR UNIT FAN COIL UNIT
