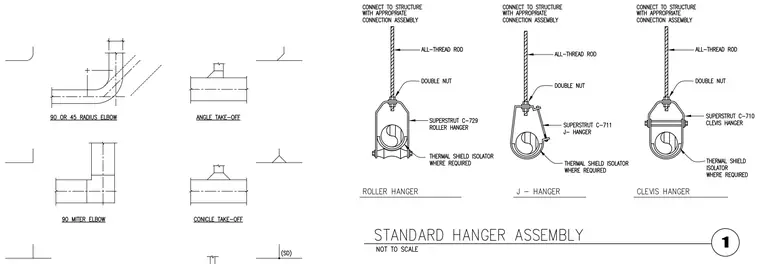

An all-thread rod connects to the overhead structure using an appropriate connection assembly and secures to the hanger with double nuts. The roller hanger utilizes a Superstrut C-729 roller assembly, the J-hanger uses a Superstrut C-711 J-hanger, and the clevis hanger uses a Superstrut C-710 clevis hanger. A thermal shield isolator is included where required beneath the suspended pipe.
