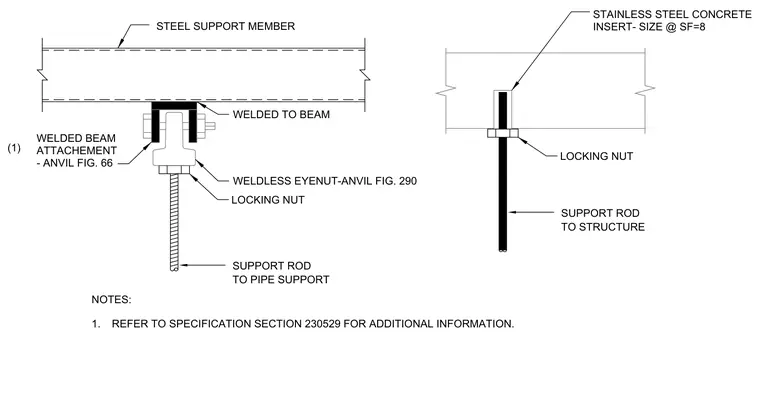

A threaded support rod hangs from a steel support member via a welded beam attachment, secured with a weldless eyenut and a locking nut. The beam attachment is welded directly to the underside of the steel support member. A parallel detail shows a support rod secured to a concrete slab using a stainless steel concrete insert and a locking nut. Additional installation guidance is referenced through specification section 230529.
LOCKING NUT TO PIPE SUPPORT SUPPORT ROD WELDLESS EYENUT-ANVIL FIG. 290 STEEL SUPPORT MEMBER WELDED TO BEAM WELDED BEAM ATTACHEMENT - ANVIL FIG. 66 SUPPORT ROD TO STRUCTURE LOCKING NUT STAINLESS STEEL CONCRETE INSERT- SIZE @ SF=8 1. NOTES: REFER TO SPECIFICATION SECTION 230529 FOR ADDITIONAL INFORMATION. (1)
