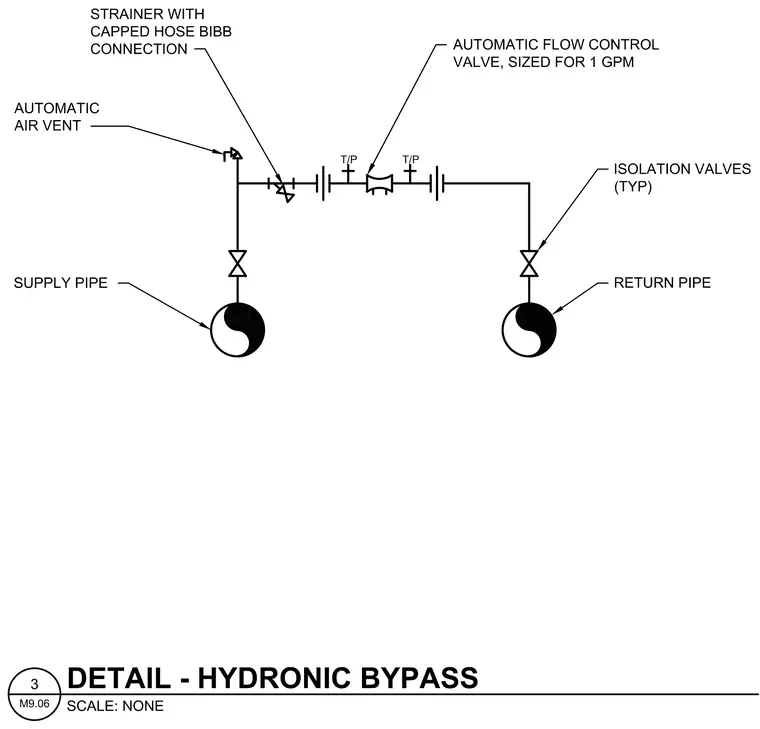

An automatic air vent is installed at the high point of the supply riser. A strainer with a capped hose bibb connection precedes the control assembly on the supply branch. An automatic flow control valve sized for one gallon per minute is flanked by temperature and pressure ports. Isolation valves are positioned on both the supply and return pipes for system maintenance.
