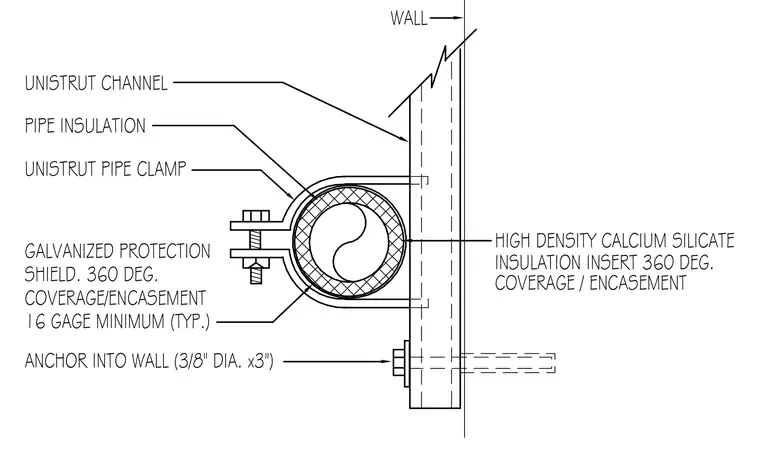

A Unistrut channel is anchored to the wall with 3/8-inch diameter by 3-inch long anchors. A Unistrut pipe clamp secures the insulated pipe assembly against the channel. The pipe is wrapped in pipe insulation with a high density calcium silicate insulation insert providing 360-degree coverage and encasement. A galvanized protection shield with 16-gauge minimum thickness provides 360-degree encasement around the insulation at the clamp.
ANCHOR INTO WALL (3/8" DIA. x3") UNISTRUT PIPE CLAMP PIPE INSULATION UNISTRUT CHANNEL WALL HIGH DENSITY CALCIUM SILICATE INSULATION INSERT 360 DEG. COVERAGE / ENCASEMENT GALVANIZED PROTECTION SHIELD. 360 DEG. COVERAGE/ENCASEMENT 16 GAGE MINIMUM (TYP.)
