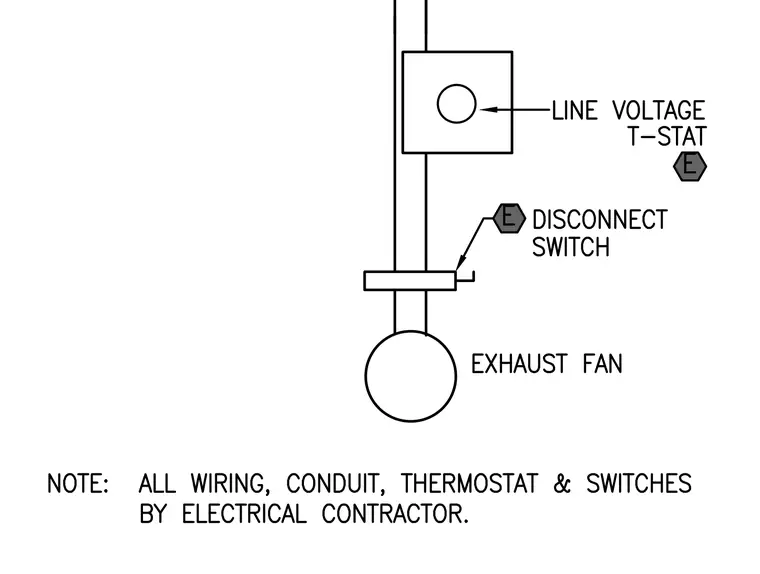

Line voltage thermostat wiring connects an exhaust fan through a disconnect switch. All wiring, conduit, thermostat, and switches are provided by the electrical contractor.
