Suspended piping is supported by adjustable clevis hangers equipped with insulation shields and welded saddles to protect insulated lines. Hanger rods measuring 1/2 inch in diameter are spaced at a maximum of 36 inches on each channel or angle support. The support framing consists of either a 1-5/8 inch 12-gauge channel or a 2x2x1/4 inch angle secured with bands. An insulation shield and insert are provided for all piping 8 inches minimum in size.

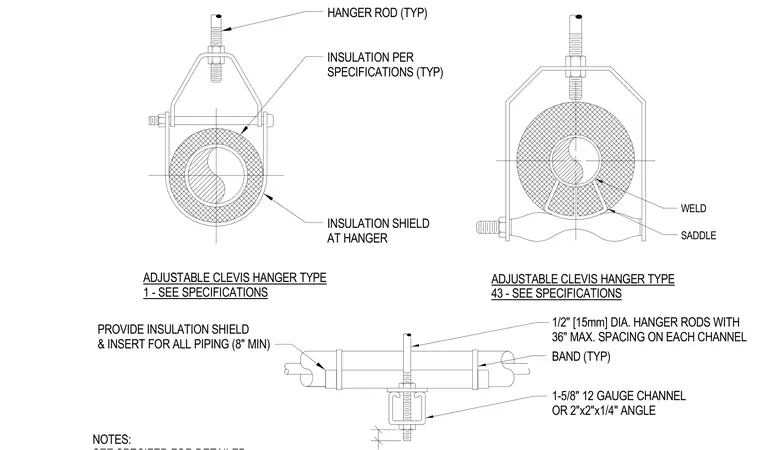

PROVIDE INSULATION SHIELD & INSERT FOR ALL PIPING (8" MIN) BAND (TYP) 1-5/8" 12 GAUGE CHANNEL OR 2"x2"x1/4" ANGLE 1/2" [15mm] DIA. HANGER RODS WITH 36" MAX. SPACING ON EACH CHANNEL INSULATION SHIELD AT HANGER INSULATION PER SPECIFICATIONS (TYP) HANGER ROD (TYP) NOTES: ADJUSTABLE CLEVIS HANGER TYPE 1 - SEE SPECIFICATIONS ADJUSTABLE CLEVIS HANGER TYPE 43 - SEE SPECIFICATIONS WELD SADDLE
