Mechanical · M-EWCW7

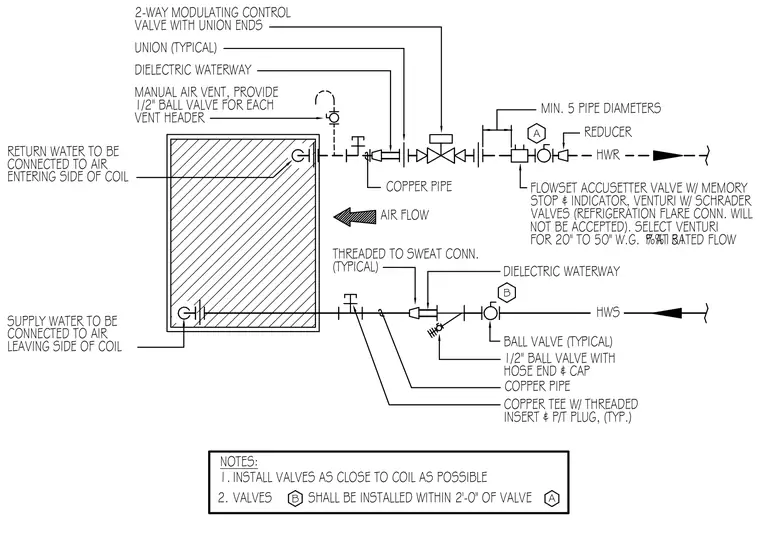

HVAC Coil Piping and Valve Connection Diagram

Materials

Elements

About this detail

Heating water supply and return piping connects to the water coil with valves installed as close to the coil as possible within two feet. The supply line includes copper pipe, a copper tee with threaded insert and pressure-temperature plug, a half-inch ball valve with a hose end and cap, a dielectric waterway, and a flowset accusetter valve with a memory stop, indicator, and venturi with schrader valves requiring a minimum of five pipe diameters of clearance. The return line features a two-way modulating control valve with union ends, unions, a dielectric waterway, and a manual air vent with a half-inch ball valve and union. Supply water connects to the air leaving side of the coil, while return water enters the side connected to the air vent header.
