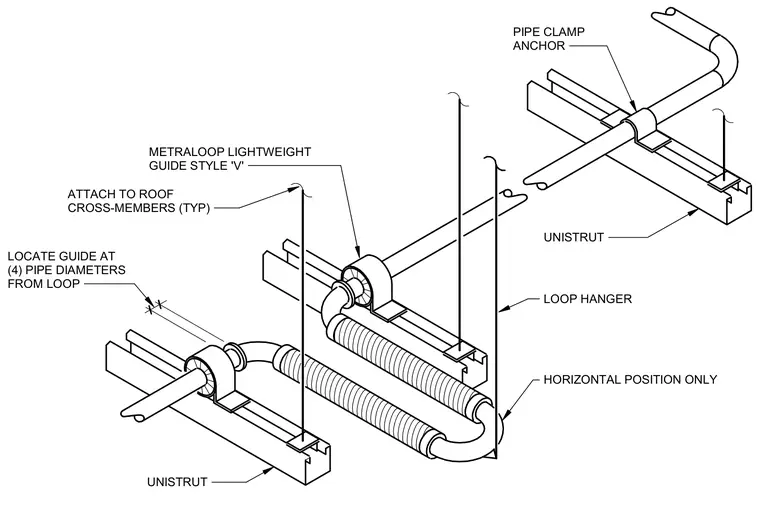

An expansion loop is suspended in a horizontal position only using loop hangers attached to roof cross-members. The piping is supported and guided by lightweight Style V guides positioned at four pipe diameters from the loop. Unistrut channel framing secures the pipe clamp anchors and provides the base for the assembly.
LOCATE GUIDE AT (4) PIPE DIAMETERS FROM LOOP LOOP HANGER ATTACH TO ROOF CROSS-MEMBERS (TYP) HORIZONTAL POSITION ONLY METRALOOP LIGHTWEIGHT GUIDE STYLE 'V' PIPE CLAMP ANCHOR UNISTRUT UNISTRUT
