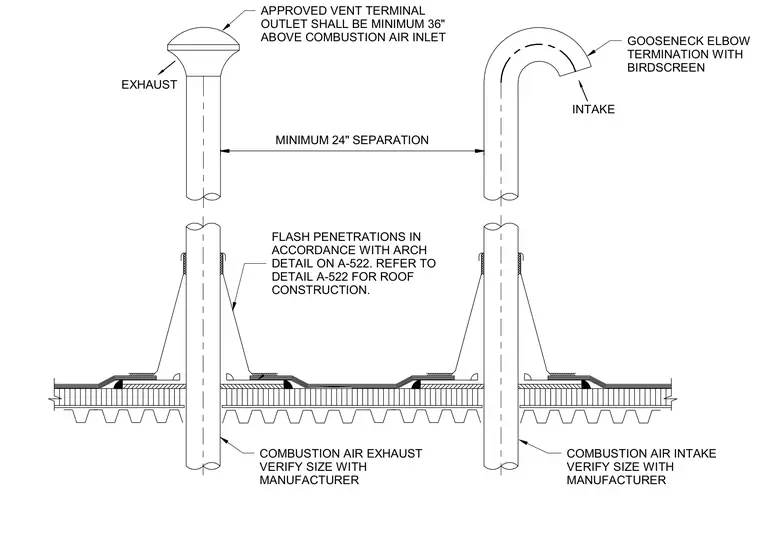

Combustion air intake and exhaust pipes penetrate the roof assembly with a minimum twenty-four-inch horizontal separation. The exhaust pipe terminates with an approved vent terminal outlet positioned a minimum of thirty-six inches above the combustion air inlet. The intake pipe features a gooseneck elbow termination equipped with a birdscreen. Roof penetrations are flashed per architectural details, with pipe sizes verified against manufacturer specifications.
COMBUSTION AIR INTAKE VERIFY SIZE WITH MANUFACTURER FLASH PENETRATIONS IN ACCORDANCE WITH ARCH DETAIL ON A-522. REFER TO DETAIL A-522 FOR ROOF CONSTRUCTION. GOOSENECK ELBOW TERMINATION WITH BIRDSCREEN APPROVED VENT TERMINAL OUTLET SHALL BE MINIMUM 36" ABOVE COMBUSTION AIR INLET MINIMUM 24" SEPARATION INTAKE EXHAUST COMBUSTION AIR EXHAUST VERIFY SIZE WITH MANUFACTURER
