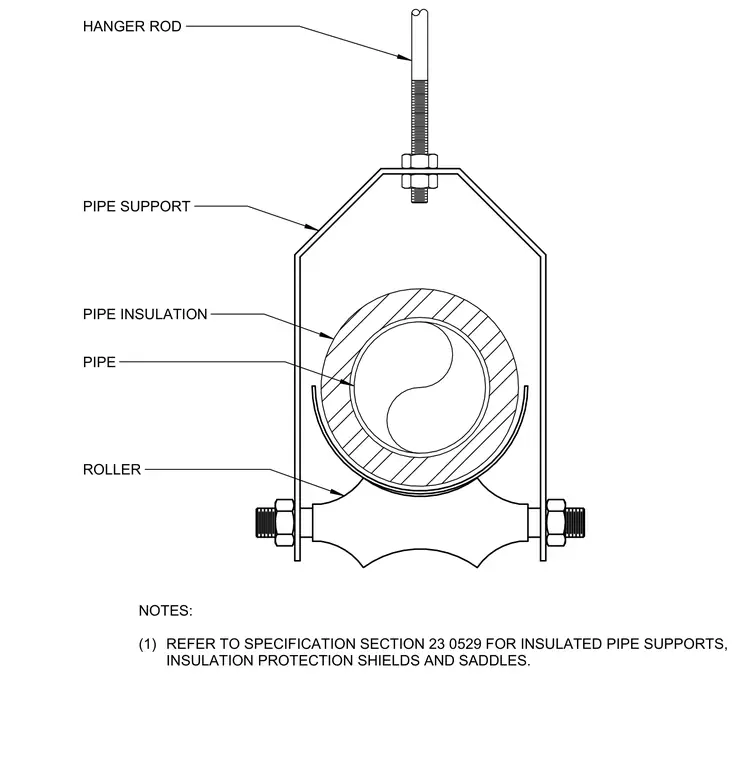

An insulated pipe rests upon a pipe roller secured within a formed steel pipe support bracket. A threaded hanger rod connects to the top of the bracket using hex nuts for vertical adjustment and support. The insulated pipe assembly refers to specification section 23 0529 for insulated pipe supports, insulation protection shields, and saddles.
HANGER ROD PIPE SUPPORT PIPE INSULATION PIPE ROLLER NOTES: (1) REFER TO SPECIFICATION SECTION 23 0529 FOR INSULATED PIPE SUPPORTS, INSULATION PROTECTION SHIELDS AND SADDLES.
