Mechanical · M-EPXY2

Inline Fan at Fluted Deck

Materials

Steel

Elements

Beams Decks Bracing Anchors / Embeds Connections / Plates

Connections

Bracing Connection Bolted Connection Embed Plate

About this detail

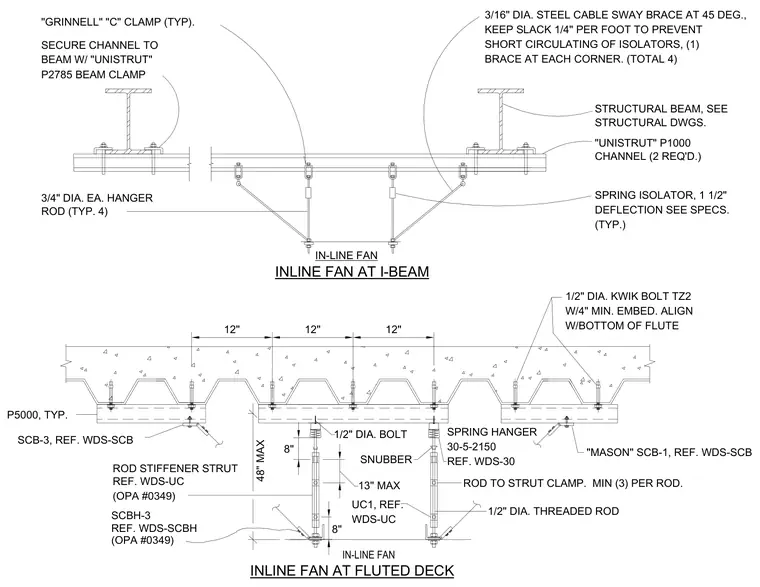

An inline fan is suspended from structural steel framing or a concrete-filled fluted metal deck using Unistrut channels and threaded rods. At the structural I-beam, Unistrut P1000 channels attach to the beam flanges with Unistrut P2785 beam clamps, supporting three-quarter-inch diameter hanger rods and spring isolators with one and one-half inch deflection. Three-sixteenth-inch diameter steel cable sway braces are installed at forty-five degrees at each corner, maintaining one-quarter-inch slack per foot to prevent short-circuiting of the isolators. At the fluted metal deck, half-inch diameter Kwik Bolt TZ2 anchors with four-inch minimum embedment secure P5000 channels aligned with the bottom of the deck flutes, connected via Mason SCB-1 and SCB-3 seismic snubbers, half-inch diameter threaded rods, and rod stiffener struts.
