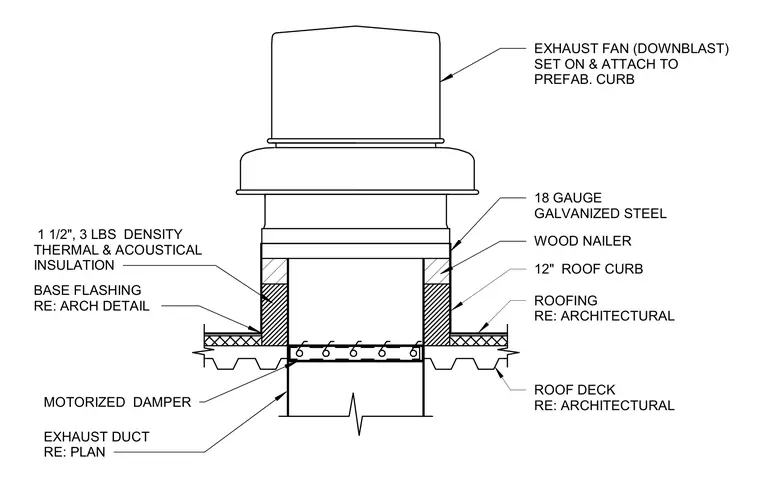

A downblast exhaust fan is set on and attached to a prefabricated 12-inch roof curb mounted over a roof deck. The curb features a wood nailer, 1 1/2-inch, 3 lbs density thermal and acoustical insulation, and base flashing detailed per architectural drawings. Roofing materials tie into the curb base per architectural specifications. An 18 gauge galvanized steel exhaust duct connects below with a motorized damper.
EXHAUST FAN (DOWNBLAST) SET ON & ATTACH TO PREFAB. CURB MOTORIZED DAMPER ROOF DECK RE: ARCHITECTURAL WOOD NAILER 12" ROOF CURB ROOFING RE: ARCHITECTURAL 1 1/2", 3 LBS DENSITY THERMAL & ACOUSTICAL INSULATION BASE FLASHING RE: ARCH DETAIL 18 GAUGE GALVANIZED STEEL EXHAUST DUCT RE: PLAN
