Mechanical · M-EMDZZ

Wall Mounted Fan and Filter Assembly

Materials

Elements

About this detail

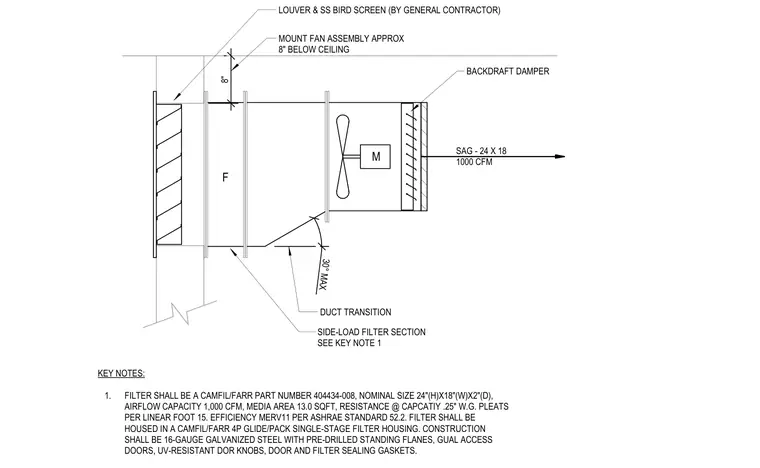

This mechanical detail shows a wall fan assembly mounted approximately eight inches below the ceiling, featuring an exterior louver and stainless steel bird screen provided by the general contractor. Air passes through a side-load filter section housing a 24-inch by 18-inch by 2-inch MERV 11 filter with an airflow capacity of 1,000 CFM and a maximum thirty-degree duct transition. The assembly includes a backdraft damper and connects to a 24 by 18 supply air grille. The filter housing is constructed of 16-gauge galvanized steel with pre-drilled standing flanges, dual access doors, and sealing gaskets.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
